Transporting Carriage SWT-3D

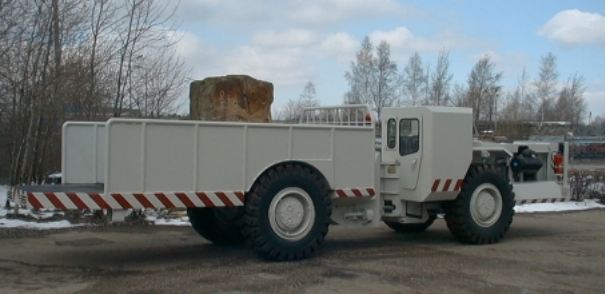

Transporting carriage SWT-3D is destined to different assembly works and transportation in mines. It is equipped in hydraulic articulated crane about moment of lifting 1500 kgm and max. radius 5.64 m. Built up on machine hydraulic welder (300A) enable executing welding works in the midst of vehicle with electrodes all types about 02 - 05 (in according o producer of welder). If welder is not used to welding works can also serve as additional source of energy to power supply smaller auxiliary devices for example drills, lighting etc.

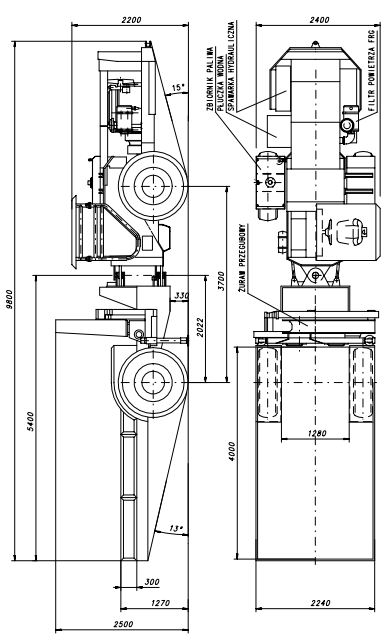

Dimensions and technical data.
| height (with crane) | 2 500 mm |
| length | 9 800 mm |
| width | 2 400 mm |
| axle base | 3 700 mm |
| wheel base | 1 800 mm |
| clearance | 330 mm |
| inner turning radius | 3 650 mm |
| operating weight | ~13 500 kg |
| disposition of operating weight: | |
| for front axle | 5 200 kg |
| for rear axle | 8 300 kg |
| turn angle | 42° |
| angle of hill climbing / downhill: | |
| for tractor | 15° |
| for platform | 13° |
| max speed | 0^38 km/h |
| platform length | 4 000 mm |
| boards opening on 3 sides, about height | 300 mm |
Specification
| Engine | SW 400/L2/7 |
| Induction system | air filter FRG-11-0211 |
| Exhaust system | catalyst SZ0P-07 + washer |
| Transmission | SB-102-KP-E/BHiN0-II (4-gears) |
| Torque converter | ZM-130 N/P |
| Turn system | Danfoss |
| Driving axles "wet": | |
| front | 479-32-000 FON Radomsko |
| rear | 479-31-000 FON Radomsko |
| Service brake | multidisk "wet" |
| Emergency-parking brake | HAP |
| Braking system | pneumatic-hydraulic |
| Tires | 14,0x24 - tube |
| Operator's seat | SA 50/1 (Kunow) |
| Lubrication | point manual |
| Articulated crane | 1500 kgm (moment of lifting) |
| Hydraulic welder | HWG 300 ( 300 A ) |
| Welding conduit (length) | 20 m |
Optional:
It is possible using components (checked in exploitation conditions) other producers in according to individual requirements of receiver.
