Transporting Carriage SWT-3K
Transporting carriage SWT-3K is destined to work in mines at transportation materials including explosive.

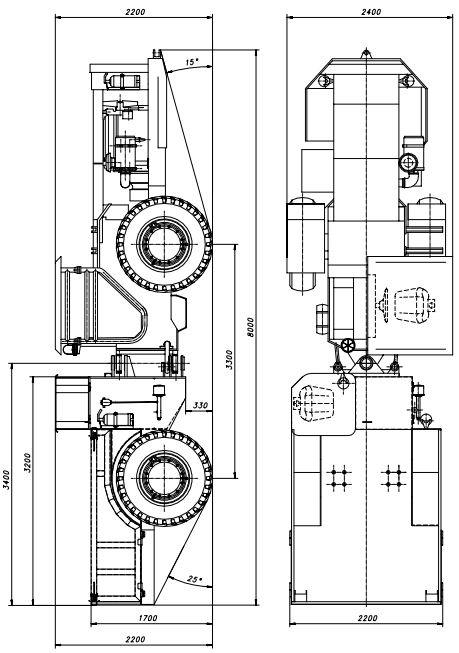

Dimensions and technical data.
| height | 2 200 mm |
| length | 8 000 mm |
| width | 2 400 mm |
| wheel base | 1 800 mm |
| clearance | 330 mm |
| inner turning radius | 3 100 mm |
| outer turning radius | 5 700 mm |
| operating weight | ~12 500 kg |
| disposition of operating weight: | |
| for front axle | 4 600 kg |
| for rear axle | 7 900 kg |
| turn axle | 42° |
| angle of hill climbing / downhill: | |
| for tractor | 15° |
| for platform | 25° |
| max speed | 0^38 km/h |
Specification
| Engine | SW 400/L2/7 |
| Induction system | air filter FRG-11-0211 |
| Exhaust system | catalyst SZ0P-07 + washer |
| Transmission | SB-102-KP-E/BHiN0-II (4-gears) |
| Torque converter | ZM-130 N/P
|
| Turn system | Danfoss |
| Driving axles "wet" | |
| front | 479-32-000 FON Radomsko |
| rear | 479-31-000 FON Radomsko |
| Service brake | multidisk "wet" |
| Emergency-parking brake | HAP |
| Braking system | pneumatic-hydraulic |
| Tires | 14,0x24 - tube |
| Operator's seat | SA 50/1L (Kunow) |
| Lubrication | point manual |
| Escort place with little roof and cover of back and sides covers | |
| Amortization seat of escort place SA-65 (Kunow) | |
| Box on detonators closed, lined with spark safety material | |
| Extinguisher | |
| Signaling lamp - blue |
Optional:
It is possible using components (checked in exploitation conditions) other producers in according to individual requirements of receiver.
