Transporting Carriage SWT-3O ENG
ransporting Carriage SWT-3O

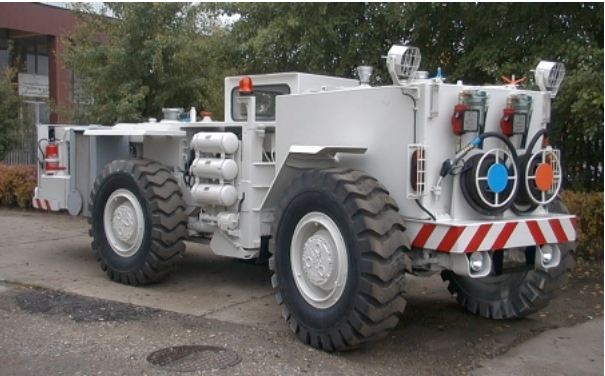

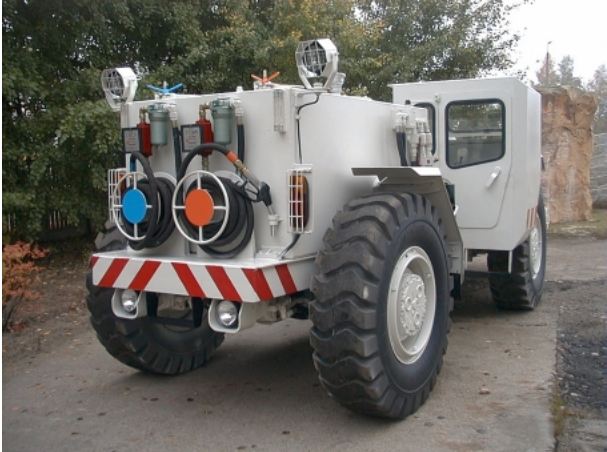

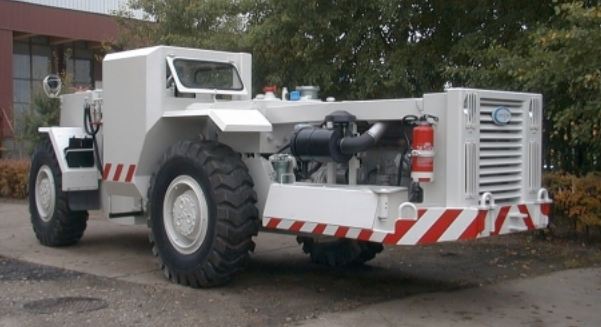

Transporting carriage SWT-3O is destined to work in mines at providing mining machines in oils. Distribution of oils and fuels is realized by pumps, at switched engine. Consumption of oils and fuels is measured by flow-meters.Heated cabin of operator enable work of machine in variable climatical conditions (mine -surface area).

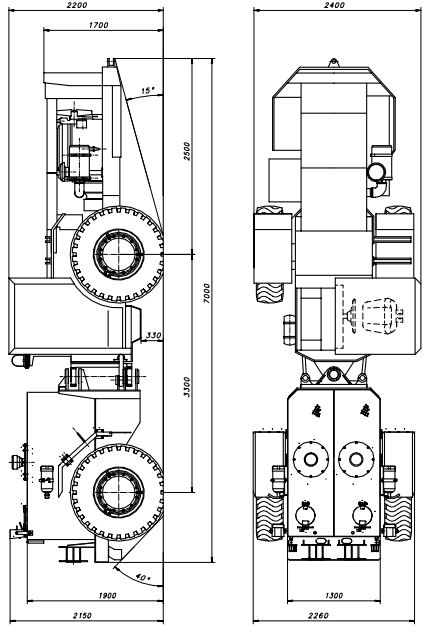

Dimensions and technical data.
| height | 2 200 mm |
| length | 7 000 mm |
| width | 2 400 mm |
| axle base | 3 300 mm |
| wheel base | 1 800 mm |
| clearance | 330 mm |
| inner turning radius | 3 050 mm |
| outer turning radius | 5 600 mm |
| operating weight (empty tanks ) | ~11 500 kg |
| disposition of operating weight (empty tanks): | |
| for front axle | 4 500 kg |
| for rear axle | 7 000 kg |
| turn angle | 42° |
| angle of hill climbing / downhill: | |
| for tractor | 15° |
| for platform | 30° |
| max speed | 0^38 km/h |
| tanks capacity: | |
| hydraulic oil 1 | 1200 dm3 |
| hydraulic oil 2 | 1200 dm3 |
Specification
| Engine | SW 400/L2 |
| Induction system | air filter FRG-11-0211 |
| Exhaust system | catalyst SZ0P-07 + washer |
| Transmission | SB-102-KP-E/BHiN0-II (4-gears) |
| Torque converter | ZM-130 N/P
|
| Turn system | Danfoss |
| Driving axles "wet" | |
| front | 479-32-000 FON Radomsko |
| rear | 479-31-000 FON Radomsko |
| Service brake | multidisk "wet" |
| Emergency-parking brake | HAP |
| Braking system | pneumatic-hydraulic |
| Tires | 14,0x24 - tube |
| Operator's seat | SA 50/1L (Kunow) |
| Lubrication | point manual |
| Escort place with little roof and cover of back and sides covers | |
| Amortization seat of escort place SA-65 (Kunow) | |
| Box on detonators closed, lined with spark safety material | |
| Extinguisher | |
| Signaling lamp - blue |
Optional:
It is possible using components (checked in exploitation conditions) other producers in according to individual requirements of receiver.
