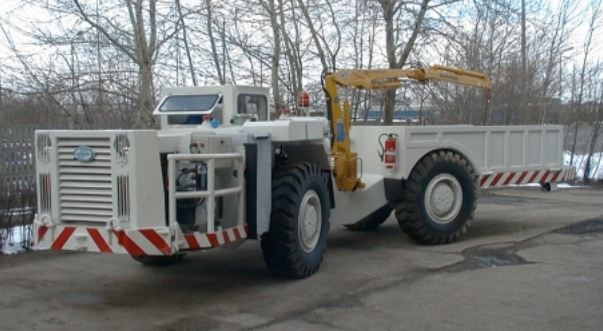

Transporting Carriage SWT-3S



Transporting carriage SWT-3S is destined to work in mines at transportation of materials about length to 4m, with possibility mechanical unloading. It is equipped in articulated crane about moment of lifting 1500 kgm and max. radius 5.64m. Heated cabin of operator enable work of machine in variable climatical conditions (mine - surface area).

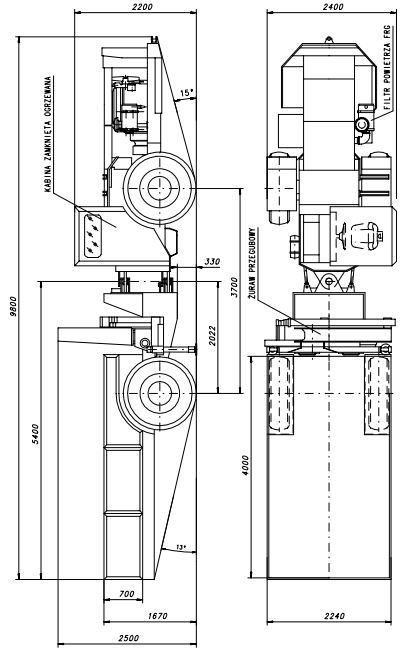

Dimensions and technical data.



height (with crane)	2 500 mm
length	9 800 mm
width	2 400 mm
axle base	3 700 mm
wheel base	1 800 mm
clearance	330 mm
inner turning radius	3 650 mm
operating weight	~13 500 kg
disposition of operating weight:
for front axle	5 200 kg
for rear axle	8 300 kg
turn angle	42°
angle of hill climbing / downhill:
for tractor	15°
for platform	13°
max speed	0^38 km/h
platform length	4 000 mm
boards opening on 3 sides, about height	700 mm



Specification



Engine	SW 400/L2/7
Induction system	air filter FRG-11-0211
Exhaust system	catalyst SZ0P-07 + washer
Transmission	SB-102-KP-E/BHiN0-II (4-gears)
Torque converter	ZM-130 N/P
Turn system	Danfoss
Driving axles "wet":
front	479-32-000 FON Radomsko
rear	479-31-000 FON Radomsko
Service brake	multidisks "wet"
Emergency parking brake	HAP
Braking system	pneumatic-hydraulic
Tyres	14,0x24 - tube
Operator's seat	SA 50/1 (Kunow)
Lubrication	point manual
Operator's cab	closed, heated
Heating cab	water with ventilator
Articulated crane	1500 kgm (lifting moment)



Optional:

It is possible using components (checked in exploitation conditions) other producers in according to individuals requirements if receiver.
