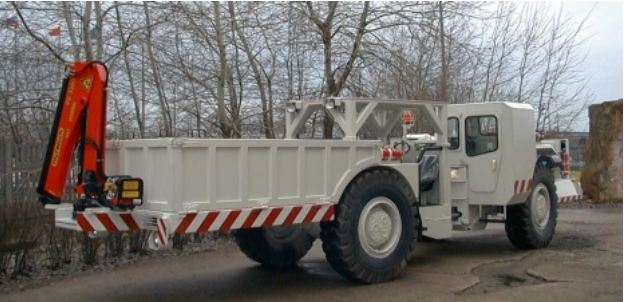

ransporting Carriage SWT-3S/A

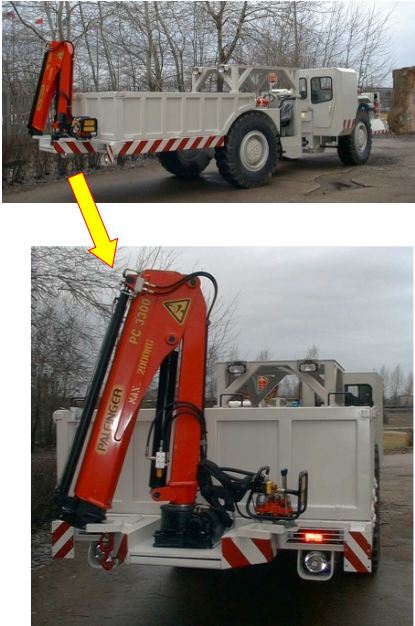

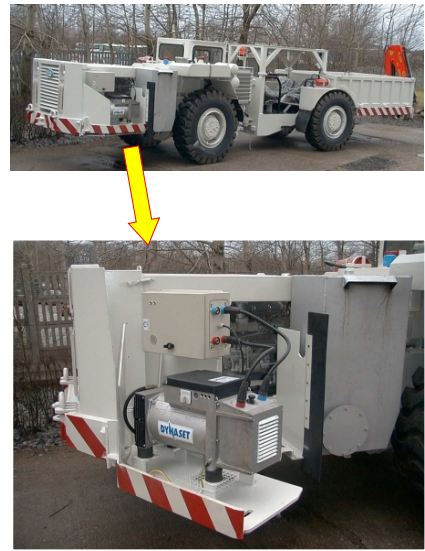

Transporting carriage SWT-3S/A is destined to work in mines at transportation materials about length to 2,7m i max. weight to 3000 kg, with possibility mechanical unloading. It is equipped in hydraulic crane PC-3300A PALFINGER about max lifting capacity 2050 kg by radius 1,55 m (max. radius 3,75 m). Heated operator's cab enable work of machine in variable climatical conditions (mine - surface area). Additionally on platform are placed four seats with roof type SA-65 (Kunow). Built up on the tractor of the hydraulic welder type HGW-400 DYNASET (400A) enable executing welding works in the midst of vehicle with electrodes all types about diameter 02 - 07 (in according to producer of welder). If welder is not used to welding works can also serve as additional source of energy to power supply smaller auxiliary devices for example drills, lighting etc.Working unit of the vehicle is supplied from diesel engine - operator has to disposal mobile analyser of gases O2 , CO type MX21 to continuous monitoring composition of mine's air in range of content oxygen and carbon oxide.
Dimensions and technical data.

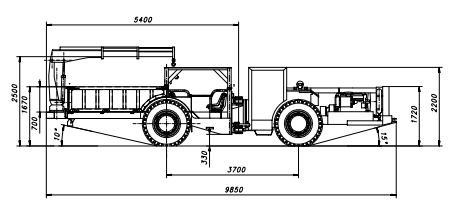

| height (with crane) | 2 500 mm |
| length | 9 850 mm |
| width | 2 320 mm |
| axle base | 3 700 mm |
| wheel base | 1 800 mm |
| clearance | 330 mm |

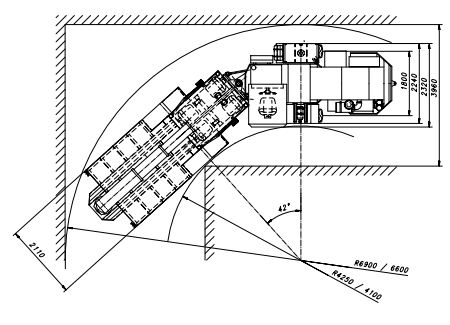

| inner turning radius | 3 650 mm |
| operating weight | ~13 500 kg |
| disposition of operating weight: | |
| for front axle | 5 200 kg |
| for rear axle | 8 300 kg |
| turn angle | 42° |
| angle of hill climbing / downhill: | |
| for tractor | 15° |
| for platform | 13° |
| max speed | 0^38 km/h |
| platform length | 4 000 mm |
| boards opening on 3 sides, about height | 700 mm |
Specification
| Engine | SW 400/L2/7 |
| Induction system | air filter FRG-11-0211 |
| Exhaust system | catalyst SZ0P-07 + washer |
| Transmission | SB-102-KP-E/BHiN0-II (4-gears) |
| Torque converter | ZM-130 N/P |
| Turn system | Danfoss |
| Driving axles "wet": | |
| front | 479-32-000 FON Radomsko |
| rear | 479-31-000 FON Radomsko |
| Service brake | multidisks "wet" |
| Emergency parking brake | HAP |
| Braking system | pneumatic-hydraulic |
| Tyres | 14,0x24 - tube |
| Operator's seat | SA 50/1 (Kunow) |
| Lubrication | point manual |
| Operator's cab | closed, heated |
| Heating cab | water with ventilator |
| Articulated crane | 1500 kgm (lifting moment) |
Optional:
It is possible using components (checked in exploitation conditions) other producers in according to individual requirements of receiver.
