Bolting Rig - Low SWWN-1/1H "WIR"

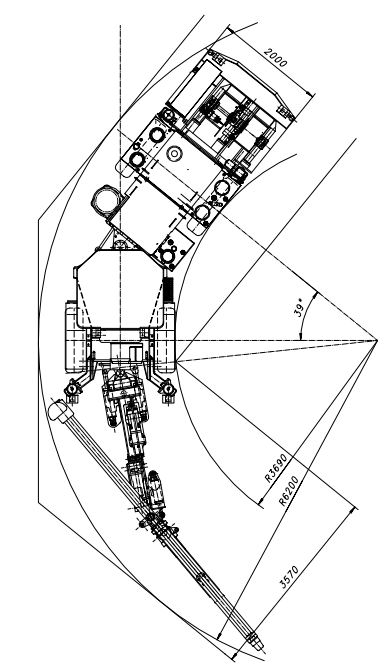

Drilling Rig - Low SWWN-1/1H "WIR" is destined to drilling blast-holes in not-methane excavations in underground mines metal ores. Parameters of machine especially predispose to exploitation in excavations so-called." thin deposits" ie. in excavations below 2m. Large freedom in manoeuvring with boom and steering turn permits drive on crossing about external radius of turn about 6200 mm, at minimum - widths of corridor 3570 mm and heights below 1950 mm.Good stability of rig assures drive in excavations about longitudinal inclination to 15° and to transverse inclination to 8°.

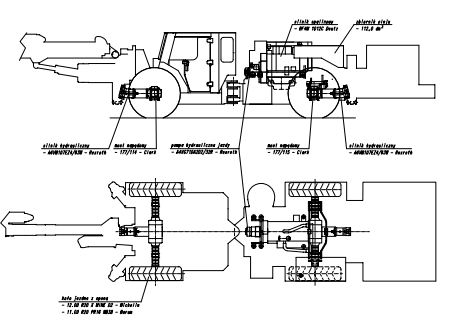

  Drilling rig consists from two principle elements: tractor and working unit. There are joint with oneself bearing joint about perpendicular axis of turn. Frame of tractor (of new construction - ZANAM) fastened is to axle by cradle about inclination ±7°. Between element built-in are two hydraulic cylinders realizing turn of machine. Driving system (on two axles) consists from: engine, hydrostatic system of carriage drive (pump - hydraulic engines fastened to driving axles) and "wet bridges" . On tractor will built-up be such auxiliary devices as: water pump, air-compressor, cable reel, hose reel, etc. Working unit consists from straight-line boom, feed and hydraulic propelled hammer drifter
to drilling holes about diameter 45 ÷ 64mm. Drive of working unit is realized from electric mine - nets 500V. Machine possesses operator's protective construction realizing in full range of requirement of mining - norm PN-92 / G-59001 "Constructions protecting operator before sliding rocks. Requirements and investigations." for charges with dynamic energy 60 kJ. Construction of rig permits on one-man service.

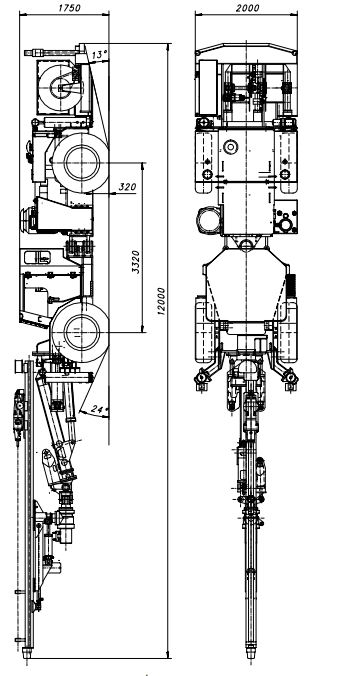

Main dimensions and technical data

length 12 000 mm
height 1 750 mm
width 2 000 mm
axle base 3 320 mm
wheel base 2 000 mm
clearance 320 mm
inner turning radius 3 690 mm
outer turning radius 6 200 mm
inclination of cradle
turn angle 39°
hill climbing / downhill angle 24° / 13°
operating weight 14 360 kg
pressure in tires (front and rear) 0,75 MPa

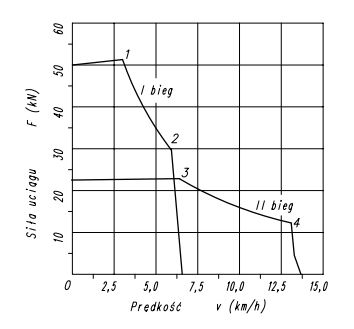

speed max.
I gear 6 km/h
II gear 13 km/h



engine Deutz BF4M 1012C
catalyst + silencer CEPL
air filter Mann
coupling/adapter SAE 4/10" - Balboni
carrying drive firm Rexroth: variable delivery pump A4VG71D
variable absorptivity hydraulic engines A6VM107
axles (wet) Clark - Hurth serial 177
tires with tubes 12.00 R20 X MINE D2 MICHELIN
Turning system (hydrostatic) Danfoss
Braking system (hydraulic) Safim
straight –line boom RWP-01 DFM ZANAM
or RA-HL3.3.000.00 FUM CHOCIANÓW
drifter COP 1238 ME ATLAS COPCO
oil cooler FG 120
control panel with distributors Danfoss DFM ZANAM
water pump CRN-4-80 GRUNDFOS
hydraulic jacks GWP-2B or HPS.00 DFM ZANAM
machine reflectors 0219 pcs. 4
operational reflectors 0509 pcs. 4
main switch WS-3/3 DFM ZANAM
cable reel DFM ZANAM / CAVOTEC or BL2 ZD Lubin
central lubrication system VOGEL
protection hydraulic system
by polluted oil filter
(control lamp)
filtration PALL
compressor MK-13 ZD Lubin
oiler PARKER
power pack with engine 45 kW and pump set DAVID BROWN
Additional equipment:
- road signs, stand, extinguisher, wedges under wheels
