DRILLING RIG SWW – 1H
DRILLING RIG SWW – 1H
Applicability

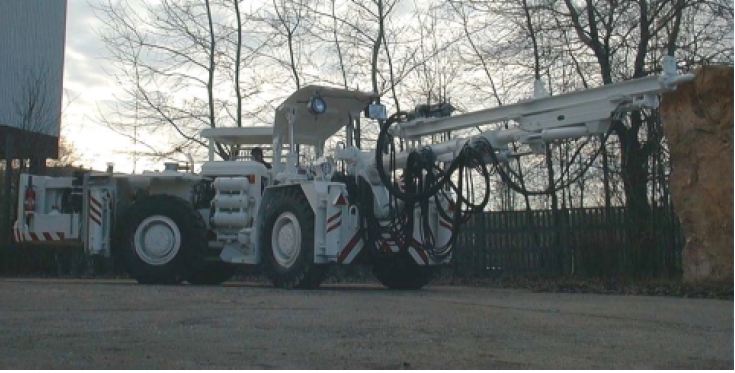

The self-propelled drilling rig SWW-1H is destined for drilling blast-holes 3200 mm long
in mining excavations metal ore mines. The working unit enables drilling holes dia to 64 mm. The working unit is composed of boom mounted on platform, feed frame with
telescopic support of drifter to drill long holes and hammer drifter hydraulic driven. Easy handled boom and low overall height of the car in its transport arragment enable
driving under pipelines whereas steering system allows to drive through crossings of external turning radius 6000 mm.
Main dimensions and technical data
| Transporting length | ~ 11950 mm |
| Car height | 2200 mm |
| Car width | 2500 mm |
| Axle base | 3300 mm |
| Wheel track | 1800 mm |
| Clearance | 330 mm |
| Inner turning radius | 2800 mm |
| Outer turning radius | 5800 mm |
| Car turning angle | 42° |
| Operating weight | 17000 kg |
| Pressure in tyres: | |
| front | 0,5 MPa |
| rear | 0,5 MPa |
| Speed ( forward and reverse ) | |
| I gear | 0÷6 km/h |
| II gear | 0÷12 km/h |
| III and IV gear | locked |
Specification
| Driving system | |
| Engine | SW400/Ł2 WSW "Andoria" S.A. Andrychów |
| Exhaust system | catalyst CE 8SX (CEPL) + washer |
| Torque converter | ZM-130N ZHS Łódź |
| Transmission | SB 102KP Bumar-Mrągowo |
| Driving axle – front / rear | 443-05-0000 FM Radomsko |
| Driving shafts | 8 – holes Polmo Szczecin |
| Turn system ( hydrostatic) | `ZF |
| Tyres | 14.0 x 24 tube |
| Braking system | two-way, hydraulic with pneumatic aided with disc brakes and
clamps type B.F. Goodrich with system to feed emergency-parking brake ( HAP ) |
| Working unit | |
| Boom | WT-1 ZANAM |
| Feed | RWZ ZANAM |
| Drifter | COP-1238 Atlas Copco
...... Or HL-510B Tamrock |
| Control panel with distributors | H4WMM16 Wadowice
PVG-32 (5 - sections) Danfoss PVG-32 (6 - sections) Danfoss |
| Distributor of carriage | RBS 16 |
| High-pressure hydraulic oil filter | FD2-100-160-10/SW2 WF "PZL –
Sędziszów" |
| Hydraulic oil drain filter | FD1-10-200 (2 szt.) WF "PZL –
Sędziszów" |
| Oil cooler | FG120 BOWMAN |
| Compressor | C-1000 Tamrock |
| Oiler | KVL-1 Tamrock |
| Electric motor | 37 kW CELMA S.A. Cieszyn |
| Hydraulic pump | P144 Waryński Hydraulika
S.A. |
| Hydraulic jacks (4 pcs.) | GWP-2B ZANAM |
| Main switch | ZANAM |
