WHEEL LOADER LKP-0301A ENG

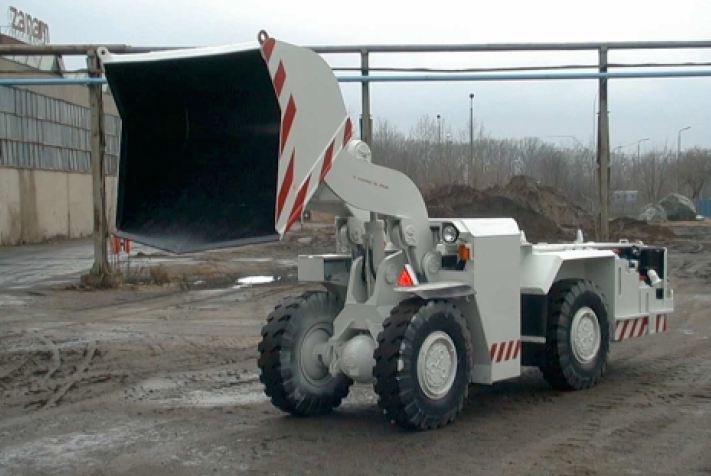

WHEEL LOADER LKP-0301A
Destination
Wheel loader (bucket loader) LKP-0301A is destined to loading and haulaging output from
exploitation faces to reloading point in not methane excavations of mining - mines of metalsores. The wheel loader except winning ore from exploitation faces and loading on dumping cars,
relatively on department points unloading ore, could also be used to auxiliary work as: evening,
cleaning excavations, scraping winning in exploitation faces relatively to other auxiliary work.
Good stability of wheel loader assure drive, as well during straight drive as also during turn
(in full range turn angle) towards tractor and towards bucket in excavations about inclination in
towards drive to 11° and perpendicular to 4°.
Specification
| Engine | DEUTZ F6L912W |
| Diesel, 6-cyliders, four-stroke, air-cooled | |
| Power rating | 60 kW at 2300 rpm |
| Torque | 275 Nm at 1400 rpm |
| Induction system |
air filter GF-7.60.00 with below atmospheric sensor of pollution |
| Exhaust system | catalyst SZOP 07 + washer |
| Transmission | CLARK R28362 |
| Torque converter | CLARK C-271 |
| Turn system | REXROTH
|
| Driving axle – front/rear | 479-22-0000 (FON RADOMSKO) |
| Braking system | hydraulic REXROTH |
| Service brake | multidisks "wet" |
| Emergency-parking brake | HAP |
| Tyres | 14,0x24 - tube |
| Bucket |
standard 1,6m3 - steel 18G2A+ working equip. steel HARDOX 500 |
| Lubrication | manual point |
| Electrical installation | 24 V |
Optional:
It is possible using components (checked in exploitation conditions) other producers in
according to individual requirements of receiver.

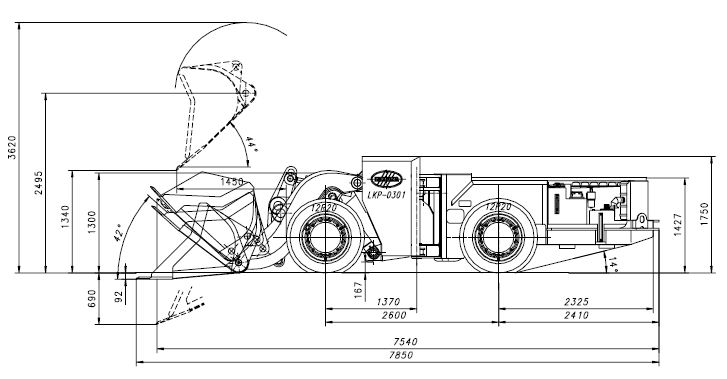

Dimensions and technical data
| Length | |
| Bucket rest on the ground | 7 850 mm |
| Bucket in transport position | 7 540 мм
|
| Width | |
| Over tyres | 1 600 мм |
| Over bucket | 1 760 мм |
| Height | 2 100 мм |
| Operating weight | 10 800 кг |
| Operating weight | 10 800 kg |
| Disposition of operating weight (without loading): | |
| For front axle | 4 840 кг |
| For rear axle | 5 960 кг |
| Nominal bucket capacity | 1,6 м3 |
| Tramming capacity | 32 kN |
| Break out force on bucket edge | 74 kN |
| Pull force | 70 kN |
| Max. unloading height 1635 mm by unloading angle 44° | 1 635 mm |
| Range unloading by unloading angle 44° | 1 360 mm |
| Max. depth of loosening of rock | 690 mm |
| Max. depth of loosening of rock | 690 mm |
| Max. angle unloading bucket | 44° |
| Max. angle loading bucket | 42° |
| Hill climbing ability | 97% |
| Angle of tilt rear axle | ± 10° |
| Hill climbing angle | 11° |
| Clearance | 260 мм |

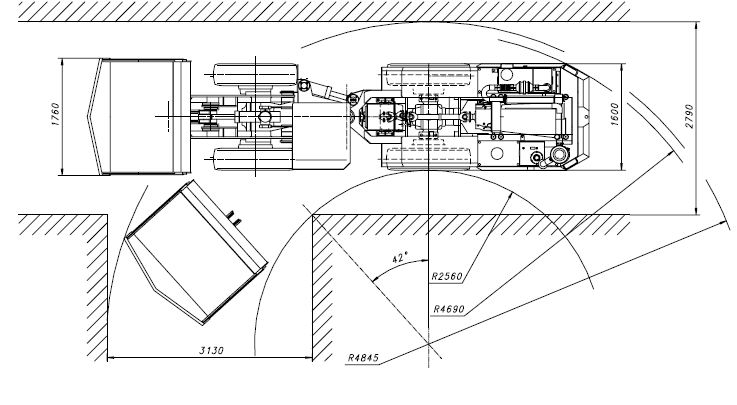

| Inner turning radius | 2 560 мм |
| Outer turning radius | 4 690 мм
|
| Max. speed (forward and reverse) | |
| I gear | 0^4,5 |
| II gear | 0^9,0 |
| III gear | 0^19,0 |
| Pressure in tyres | |
| Front | 0,5 MPa
|
| Rear | 0,4 Mpa |
| Working times: | |
| Lifting boom | 5,5±10%с |
| Lowing boom | 4,5±10%с |
| Opening bucket | 2,5±10%с |
| Closing bucket | 3,0±10%с |
| Full turn | 3,0±10%с |
