WHEEL LOADER LKP – 0401 ENG
WHEEL LOADER LKP – 0401
Destination

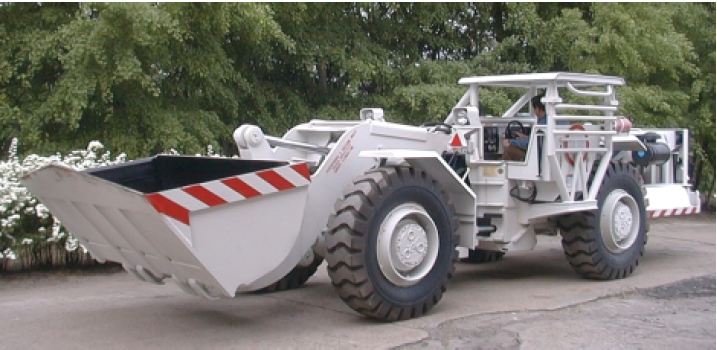

Wheel loader LKP-0401 (bucket loader) is destined to work for loading and transporting
winning from active end to reload point in mines of metal ore and minerals raw.

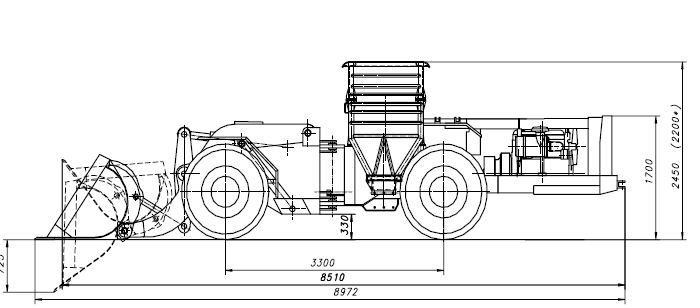

Dimensions and technical data
| Tramming capacity | 40 kN |
| Nominal bucket capacity | 2 m3 |
| Height | |
| Basic version | 2 450 mm |
| Lower version | 2 200 mm |
| Low version | 2 050 mm |
| Length | |
| Bucket in transport position | 8 510 mm |
| Bucket rest on the ground | 8 972 mm |
| Width | |
| Over bucket | 2 230 mm |
| Over tyres | 2 380 mm |
| Axle base | 3 300 mm |
| Wheel track | 1 800 mm |
| Clearance | 330 mm |

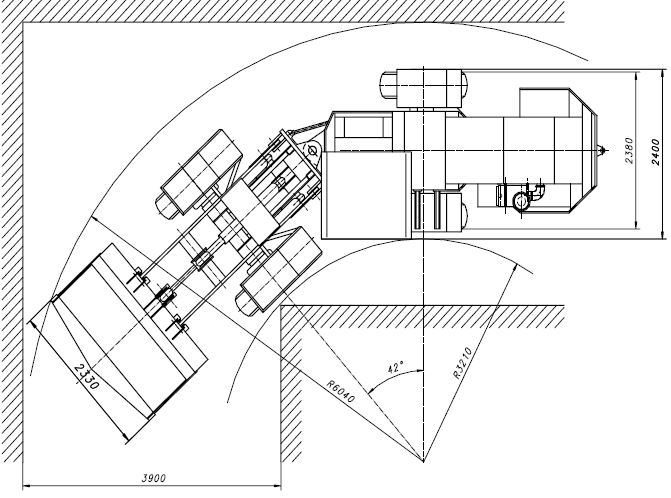

| Inner turning radius | 3 210 mm |
| Operating weight | ≈11 950 kg |
| Disposition of operating weight: | |
| For front axle | 4 900 kg |
| For rear axle | 7 050 kg |
| Disposition of operating weight with nominal loading : | |
| For front axle | 11 215 kg |
| For rear axle | 4 735 kg |
| Break out force | 77 kN |
| Pull force | 60 kN |
| Max. unloading height | 1 790 mm |
| Range unloading | 1 530 mm |
| Max. depth of loosening of rock | 725 mm |
| Angle unloading bucket | 52° |
| Angle closing bucket | 51° |
| Turn angle | 42° |
| Hill climbing angle | 15° |
| Working times: | |
| Lifting boom | 5,0 s |
| Lowing boom | 4,5 s |
| Opening bucket | 2,5 s |
| Closing bucket | 2,0 s |
| Full turn | 2,5 s |
| Max. speed | 0÷38 km/h |
Specification
| Engine | SW 400 / Ł2 / 7 |
| Induction system | air filter GF-7.60.00 with below atmospheric sensor of pollution |
| Exhaust system | catalyst DC8 (DCL) + washer |
| Transmission | SB-102-KP |
| Torque converter | ZM 130N/P |
| Turn system | Danfoss |
| Driving axle "wet": | |
| front | 479-32-000 FON Radomsko |
| rear | 479-31-000 FON Radomsko |
| Braking system | pneumatic-hydraulic |
| Emergency-parking brake HAP | RK-1.00.0000 |
| Tyres | 14,0x24 - tube |
| Bucket | standard 2m3 - steel 18G2A+ working equip. steel HARDOX 500 |
| Lubrication | manual point |
