WHEEL LOADER LKP-0403 ENG

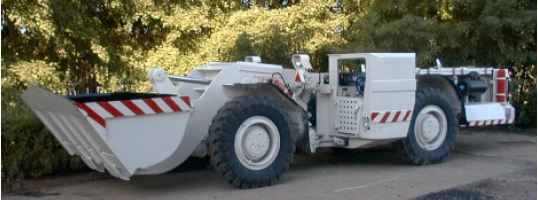

Wheel Loader LKP-0403
Destination
Wheel loader LKP-0403 is destined to work in underground excavations of mining –
metal ores and mineral with degree "a" danger of explosion of methane
Good stability of wheel loader assure drive, as well during straight drive as also during
turn towards tractor and towards bucket in excavations about longitudinal inclination (to 15°
and to transverse inclination to 8°
Machine possesses operator's protective construction realizing in full range of requirement
of mining - norm PN-92 / G-59001 "Constructions protecting operator before sliding rocks.
Requirements and investigations." for charges with dynamic energy 60 kJ.

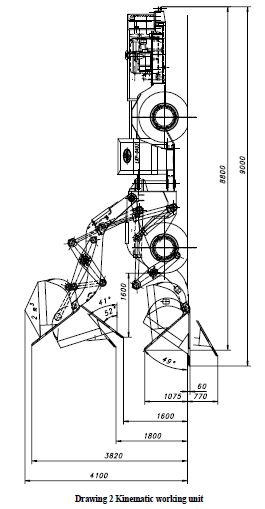

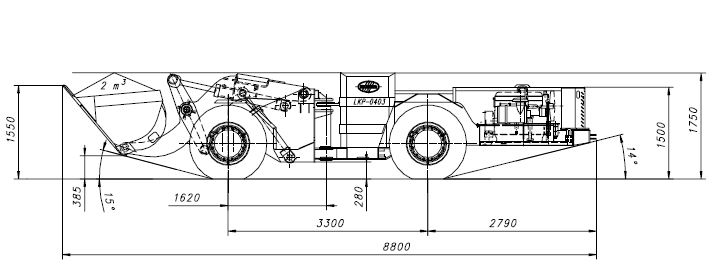

Dimensions and technical data
| Tramming capacity | 40 kN |
| Nominal bucket capacity | 2 m3 |
| Height | |
| Basic version | 2 450 mm |
| Lower version | 2 200 mm |
| Low version | 2 050 mm |
| Length | |
| Bucket in transport position | 8 510 mm |
| Bucket rest on the ground | 8 972 mm |
| Width | |
| Over bucket | 2 230 mm |
| Over tyres | 2 380 mm |
| Axle base | 3 300 mm |
| Wheel track | 1 800 mm |
| Clearance | 330 mm |

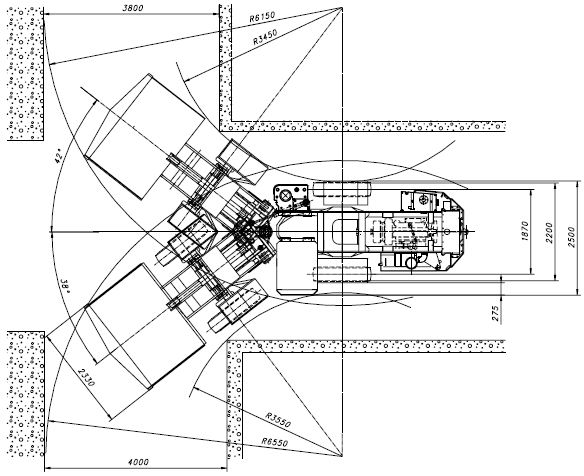

| Inner turning radius | 3 210 mm |
| Operating weight | ≈11 950 kg |
| Disposition of operating weight: | |
| For front axle | 6 000 kg |
| For rear axle | 7 700 kg |
| Disposition of operating weight with nominal loading : | |
| For front axle | 11 215 kg |
| For rear axle | 4 735 kg |
| Break out force | 77 kN |
| Pull force | 60 kN |
| Max. unloading height | 1 790 mm |
| Range unloading | 1 530 mm |
| Max. depth of loosening of rock | 725 mm |
| Angle unloading bucket | 52° |
| Angle closing bucket | 51° |
| Turn angle | 42° |
| Hill climbing angle | 15° |
| Working times: | |
| Lifting boom | 5,0 s |
| Lowing boom | 4,5 s |
| Opening bucket | 2,5 s |
| Closing bucket | 2,0 s |
| Full turn | 2,5 s |
| Max. speed | 0÷38 km/h |
Specification
| Engine | 6CT 107-2/Ł2 |
| Induction system | air filter FRG-11-0211
with below atmospheric indicator of pollution |
| Exhaust system | catalyst DC8 (DCL) +silencer DC8SAM (DCL) |
| Transmission | SB-102-2BZH HH
(with emergency-parking brake) |
| Torque converter | ZM 130N/P |
| Turn system | Danfoss |
| Driving axle "wet": | |
| front | 479-32-000 FON Radomsko |
| rear | 479-31-000 FON Radomsko |
| Braking system | pneumatic-hydraulic |
| Emergency-parking brake HAP | RK-1.00.0000 |
| Tyres | 14,0x24 - tube |
| Bucket | standard 2m3 - steel 18G2A+ working equip. steel HARDOX 500 |
| Lubrication | manual point |
Optional:
It is possible using components (checked in exploitation conditions) other producers in
according to individual requirements of receiver.
