WHEEL LOADER LKP - 0803 ENG

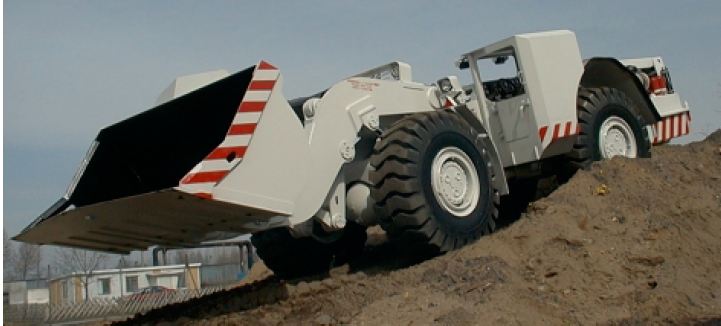

WHEEL LOADER LKP - 0803
Destination
Wheel loader LKP-0803 is destined to work for loading and transporting winning from active
end to reload point in mines of metal ore and minerals raw.
Dimensions and technical data
| Transporting length | 9 600 mm |
| Max. width | 2 880 mm |
| Max. height | 2 350 mm |
| Operating weight | 21 000 kg |
| Tramming capacity | 80 kN |
| Break out force on bucket edge | 140 kN |
| Pull force | 206 kN |
| Turn angle | 42° |
| Outer turning radius | 6 460 mm |
| Max. speed (forward and reverse) : | |
| I gear | 5,0 km/h |
| II gear | 10,0 km/h |
| III gear | 16,0 km/h |
Specification
| Engine | |
| − Type | SW 680 / 73 |
| Torque converter | |
| − Type | C – 5000 CLARK |
| Transmission | |
| − Type | R – 32000 CLARK |
| − Sort | 3-gears |
| Driving axle front / rear | |
| − Type | 474-13-0000 / 474-14-0000 |
| Service brake | multidisk "wet" |
| Tyres | |
| − Size | 23,5 R25 |
| Cab | |
| − Sort | closed construction "capsule" |
| − Control desk | with legible monitors of loader and with
signal lamps |
| Working unit | |
| − Kinematics | with unloading independence of lifting
boom |
| − Standard bucket (SAE) | 3,5 m 3 |
| − Central lubrication system | LINCOLN |
| Hydraulic installation | |
| − Hydraulic system | with working and turning circuits |
| Electrical installation | |
| − voltage | 24V underground version |
| − accumulators | 2 pcs. 165 Ah / 12 V |
