WHEEL LOADER LKP – 0805 ENG

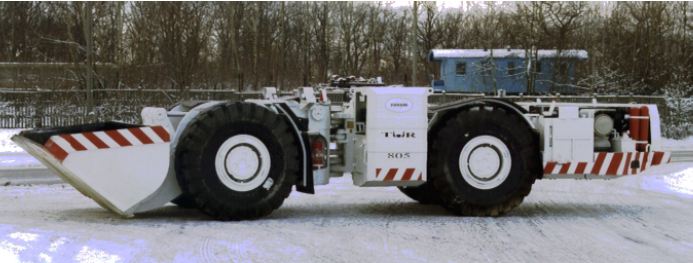

WHEEL LOADER LKP – 0805
Destination
Wheel loader LKP-0805 is destined to work for loading and transporting winning from active
end to reload point in mines of metal ore and minerals raw. Constructional solutions can be
used for so-called "lower deposit".
TECHNICAL DATA
| Length: | |
| − Bucket rest on the ground | 9 550 mm |
| − Bucket in transport position | 9 450 mm |
| Width: | |
| − Over tires | 3 140 mm |
| − Over bucket | 3 010 mm |
| Height | 2 050 mm |
| Operating weight | 22 300 kg |
| Tramming capacity | 80 kN |
| Break out force | 137,5 kN |
| Max unloading height by dumping angle 45° | 1 350 mm |
| Hill climbing angle | 15° |
| Turn angle | 42° |
| Outer turning radius | 6 800 mm |
| Max. speed (forward and reverse) : | |
| − I gear | 4,0 km/h |
| − II gear | 7,0 km/h |
| − III gear | 11,0 km/h |
SPECIFIACTION
| Engine | |
| − Type | SW 680 / 73 |
| Torque converter | |
| − Type | C-5000 Clark |
| Transmission | |
| − Type | R-28000 Clark |
| − Sort | 3-gears |
| Driving axle front / rear | |
| − Type | 474-13-0000 / 474-14-0000 |
| Service brake | multidisk, "wet" |
| Tyres | |
| − Size | 20,5 R25 |
| Cab | |
| − Sort | closed construction "capsule" |
| − Control desk | with legible monitors of loader and with
signal lamps |
| Working unit | |
| − Kinematics | with unloading independence of lifting
boom |
| − Standard bucket (SAE) | 3,5 m 3 |
| − Central lubrication system | LINCOLN |
| Hydraulic installation | |
| − Hydraulic system | with working and turning circuits |
| Electrical installation | |
| − voltage | 24V underground version |
| − accumulators | 2 pcs. 165 Ah / 12 V |
Optional:
It is possible using components (checked in exploitation conditions) other producers in according to
individual requirements of receiver.
