WHEEL LOADER LKP-0805A ENG

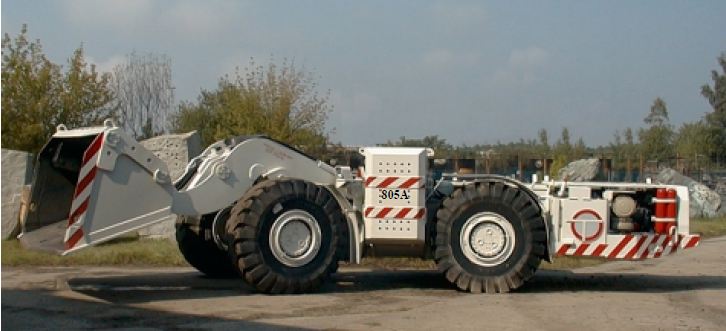

WHEEL LOADER LKP-0805A
Destination
Wheel loader LKP-0805 is destined to work at loading and transportation of output on close
distances in underground, not methane mines metal ores and mineral raw. Machine is admitted to
moving in excavations about longitudinal inclination to 15° and to transverse inclination to 8°
Machine possesses operator's protective construction realizing in full range of requirement of
mining - norm PN-92 / G-59001 "Constructions protecting operator before sliding rocks.
Requirements and investigations." for charges with dynamic energy 60 kJ.
TECHNICAL DATA
| Length: | |
| − Bucket rest on the ground | 9 930 mm |
| − Bucket in transport position | 9 550 mm |
| Width: | |
| − Over tires | 2 735 mm |
| − Over bucket | 3 010 mm |
| Height | 2 050 mm |
| Operating weight | 22 300 kg |
| Tramming capacity | 80 kN |
| Break out force | 137,5 kN |
| Max unloading height by dumping angle 45° | 1 350 mm |
| Hill climbing angle | 15° |
| Turn angle | 42° |
| Outer turning radius | 6 800 mm |
| Max. speed (forward and reverse) : | |
| − I gear | 4,0 km/h |
| − II gear | 7,0 km/h |
| − III gear | 11,0 km/h |
SPECIFIACTION
| Engine | |
| − Type | Deutz BF6M 1013 |
| Torque converter | |
| − Type | C-5000 Clark |
| Transmission | |
| − Type | R-28000 Clark |
| − Sort | 3-gears |
| Driving axle front / rear | |
| − Type | 474-13-0000 (FON Radomsko) |
| Service brake | multidisks "wet" |
| Tyres | |
| − Size | 23,5 x 25 Michelin |
| Cab | |
| − Sort | closed construction "capsule" |
| − Control desk | with legible monitors of loader and with
signal lamps |
| Working unit | |
| − Kinematics | with unloading independence of lifting
boom |
| − Standard bucket (SAE) | 3,5 m 3 |
| Electrical installation | |
| − voltage | 24V underground version |
| − accumulators | 2 pcs. 165 Ah / 12 V |
Optional:
It is possible using components (checked in exploitation conditions) other producers in according to
individual requirements of receiver.
