WHEEL LOADER LKP – 0901 ENG
WHEEL LOADER LKP – 0901
Destination
Wheel loader LKP-0901 is destined to work for loading and transporting winning from active end to reload point in mines of metal ore and minerals raw. Constructional solutions can be used for so-called "lower deposit".
Dimensions and technical data

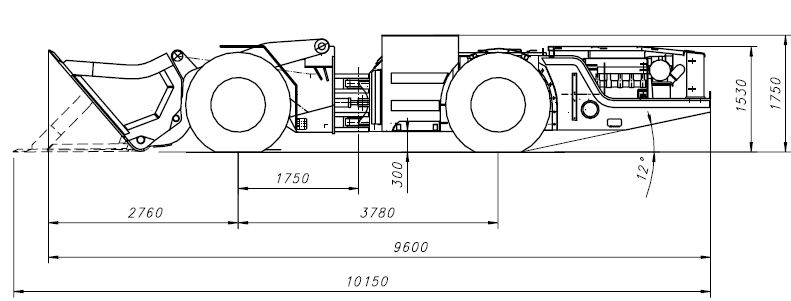

| Transporting length : | 9 600 mm |
| Max. width | 3 040 mm |
| Max. height (lowed cab) : | 1 700 mm |
| Operating weight | 25 000 kg |
| Tramming capacity | 96 kN |
| Break out force on bucket edge | 160 kN |
| Pull force | 218 kN |

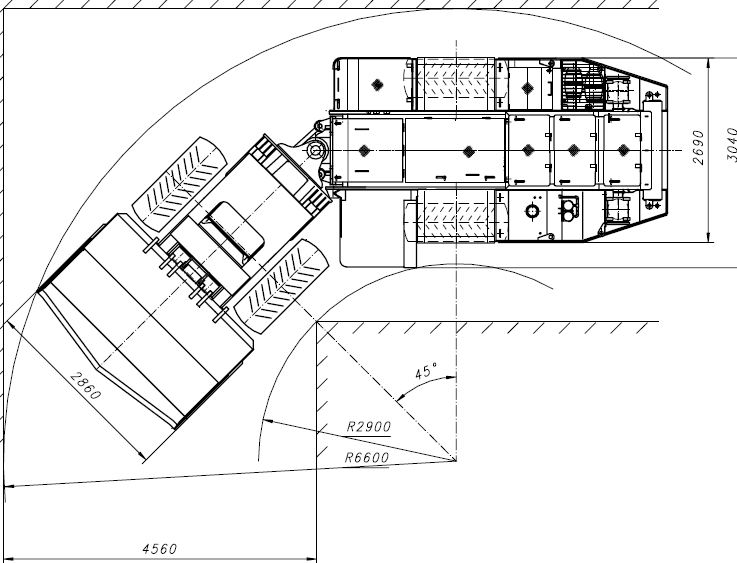

| Turn angle | 45° |
| Outer turning radius | 6 600 mm |
| Max. speed (forward and reverse) : | |
| − I gear (operational – slow) | 4,5 km/h |
| − II gear (operational – fast ) | 9,0 km/h |
| − III gear (transporting - slow) | 14,0 km/h |
| − IV gear (transporting – fast) | 17,0 km/h |
SPECIFIACTION
| Engine | |
| − Type | F10L413FW DEUTZ |
| Torque converter | |
| − Type | C-5000 Clark |
| Transmission | |
| − Type | R – 32000 CLARK |
| − Sort | 4-gears, full reversing |
| Driving axle front / rear | |
| − Type | 19D CLARK |
| Service brake | multidisks "wet" |
| Tyres | |
| − Size | 23,5 x 25 |
| Cab | |
| − Sort | closed construction "capsule" |
| − Control desk | closed construction "capsule", lifting
about 300mm |
| Working unit | |
| − Kinematics | with unloading independence of lifting
boom |
| − Standard bucket (SAE) | 3,5 m 3 |
| Electrical installation | |
| − voltage | 24V underground version |
| − accumulators | 2 pcs. 165 Ah / 12 V |
