WHEEL LOADER LKP – 0902 ENG
WHEEL LOADER LKP – 0902
Destination
Wheel loader LKP-0902 is destined to work for loading and transporting winning at short
distances in underground mines of metal ore and mineral raw.

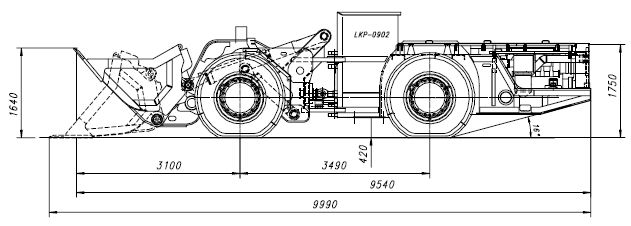

Dimensions and technical data
| Transporting length : | 9 600 mm |
| Max. width | 3 040 mm |
| Max. height (lowed cab) : | 1 700 mm |
| Operating weight | 25 000 kg |
| Tramming capacity | 96 kN |
| Break out force on bucket edge | 160 kN |
| Pull force | 218 kN |
| Turn angle | 45° |

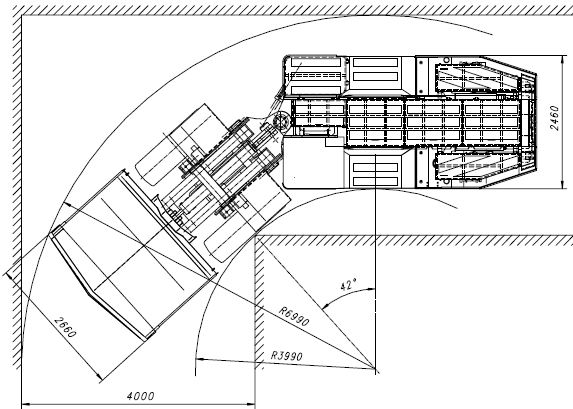

| Outer turning radius | 6 600 mm |
| Max. speed (forward and reverse) : | |
| − I gear (operational – slow) | 4,5 km/h |
| − II gear (operational – fast ) | 9,0 km/h |
| − III gear (transporting - slow) | 14,0 km/h |
| − IV gear (transporting – fast) | 17,0 km/h |
SPECIFIACTION
| Engine | |
| − Type | DEUTZ BF6M1013CP (liquid-cooled) |
| Torque converter | |
| − Type | C-5402 (CLARK) |
| Transmission | |
| − Type | R-32461 (CLARK) |
| − Sort | 4-gears, full reversing |
| Driving axle front / rear | |
| − Type | 19D CLARK |
| Service brake | multidisks "wet" |
| Tyres | |
| − Size | 18,00-25" Michelin (without tread)
or 20,5-25" XMINE D2 |
| Cab | |
| − Sort | closed construction "capsule" |
| − Control desk | closed construction "capsule", lifting
about 300mm |
| Working unit | |
| − Kinematics | with unloading independence of lifting
boom |
| − Standard bucket (SAE) | 3,5 m 3 |
| Electrical installation | |
| − voltage | 24V underground version |
| − accumulators | 2 pcs. 165 Ah / 12 V |
