WHEEL LOADER LKP-1601 ENG

WHEEL LOADER LKP-1601

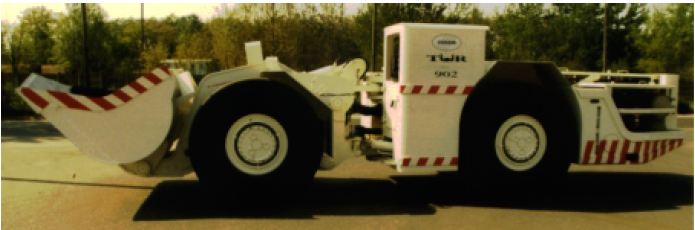

Destination

Wheel loader LKP-1601 is destined to work at loading and transportation of output on close distances in underground, not methane mines metal ores and mineral raw.Good stability of loader makes possible drive in excavations about longitudinal inclination to 15° and to transverse inclination to 8° Machine possesses operator's protective construction realizing in full range of requirement of mining - norm PN-92 / G-59001 "Constructions protecting operator before sliding rocks. Requirements and investigations." for charges with dynamic energy 60 kJ.

SPECIFICATION

Driving system
Engine DETROIT DIESEL	6063-TK32 DDEC IV - 261 kW / 2100 rpm - 12,7 dm3
Torque converter CLARK	C-8602
Transmission CLARK	R-6422
Driving axles ("wet") CLARK
− Front / rear	21D4354 (Limited Slip)
Emergency-parking brake (HAP)	480-03-0000 (FON Radomsko)
Tyres - Tubeless	Brigestone........29,5R25 VSDL T/L

II Chassis
• Driving axles: front seized on rigidly to frame, rear seized to cradle (angle of inclination 8° on side)
• Front and rear frame joint connected – used sliding bearings, ball

III Operator's position
• Cab of type "capsule" glazed, hermetic, advaced outside contour of circles
• Air-conditioning
• Electric sensors and indicators, LCD
• Steering with turn of machine by electric joystick
• Steering rotary of engine electric
• Steering working distributor electric, two-planes joystick

IV Working unit
• Bucket about capacity 8,5 m3 cylinder seized to two-sized lever
• Kinematic system assures straight-line by closed bucket
• Unloading output on height 2,75 m
• System of stabilization of boom
• Central lubrication system VOGEL or LINCOLN
• Sealed pairs of bolt connections

Optional:
It is possible using components (checked in exploitation conditions) other producers in according to individual requirements of receiver

TECHNICAL DATA

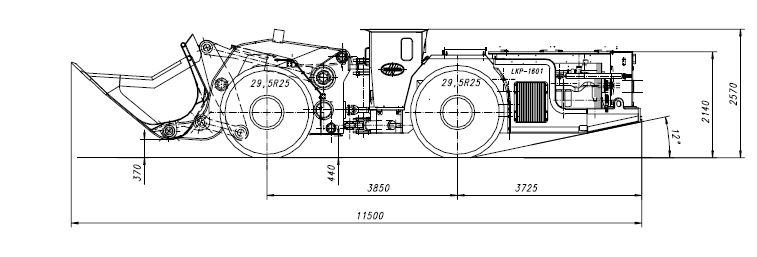

Length:
− Bucket in transport position	11 500 mm
Width:

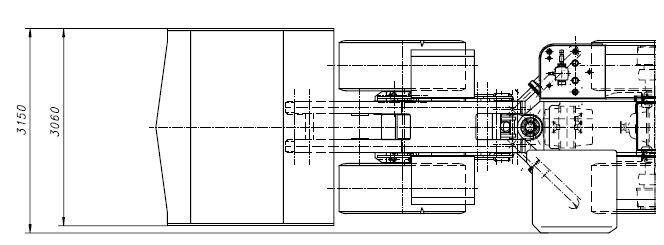

− Over bucket	3 060 mm
− Over tires	2 640 mm
− Max	3 150 mm
Height	2 570 mm
Axle base	3850 mm
Operating weight	42 300 kg
Disposition of operating weight :
− For front axle	19 900 kg
− For rear axle	22 400 kg
Disposition of machine mass with nominal loading:
− For front axle	46 000 kg
− For rear axle	12 300 kg
Nominal bucket capacity	8,5 m3
Tramming capacity	160 kN

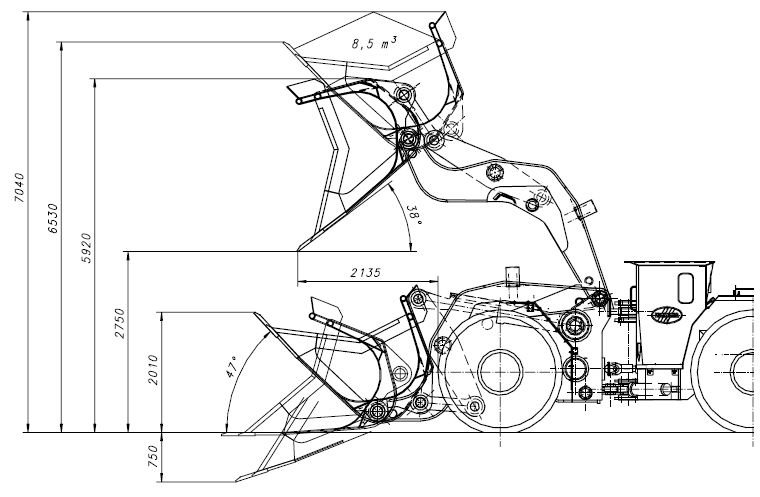

Max unloading height	2 750 mm
Max depth loosening of rock	750 mm
Turn angle (on side)	42°
Angle of turn cradle (on side)	8°
Clearance	440 mm
Inner turning radius to the left	3 480 mm
Inner turning radius to the right	3 690 mm
Outer turning radius to the left / to the right	7 500 mm
Max speed (III gear)	15,0 km/h
Capacities:
− Oil tank (max level)	600 dm3
− Fuel tank (max level)	500 dm3
