The Volvo L110 in detail

Engine
Engine: 7 liter, 6-cylinder straight turbocharged diesel engine with electronically controlled unit pumps and conventional injectors. The engine is of heavy-duty type with wet replaceable cylinder liners and replaceable valve guides and valve seats. The throttle application is transmitted electrically from the throttle pedal and eventual hand throttle. Air cleaning: three-stage. Cool-ing system: Hydrostatic, electronically controlled fan and intercooler of the air/air type.



Engine	Volvo D7D LB E2
Max power at	28,3 r/s (1700 r/min)
SAE J1995 gross	155 kW (210 hp)
ISO 9249, SAE J1349	154 kW (209 hp)
Max torque at	23,3 r/s (1400 r/min)
SAE J1995 gross	1023 Nm
ISO 9249, SAE J1349	1014 Nm

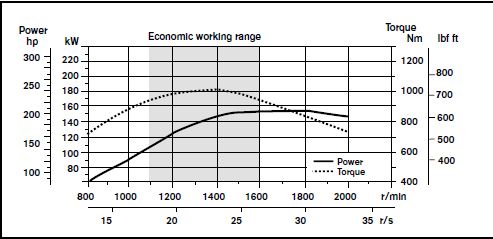

Economic working range	1100–1600 r/min
Displacement	7,1 l

Drivetrain
Torque converter: single-stage. Transmission: Volvo Countershaft-type transmission with single lever control. Fast and smooth shifting of gears between forward and reverse with PWM-valves (Pulse Width Mod-ulated). Gearshifting system: Volvo Automatic Power Shift (APS) with mode selector. Axles: Volvo, fully floating axle shafts with planetary-type hub reductions. Cast steel axle housing. Fixed front axle and oscillating rear axle. 100% differential lock on the front axle.



Transmission	Volvo HTE 204
Torque multiplication	2,69:1
Maximum speed, forward/reverse
1	7,1 km/h
2	13,2 km/h
3	25,3 km/h
4	36,2 km/h
Measured with tires	23.5 R25 L3
Front axle/rear axle	Volvo/AWB 31/30
Rear axle oscillation	±13°
Ground clearance at 13° oscillation	460 mm



Brake system
Service brake: Volvo dual-circuit system with nitrogen-charged accumulators. Outboard mounted fully hydraulic operated, fully sealed oil circulation cooled wet disc brakes. The operator can select automatic declutch of the transmission when braking by a switch on the instrument panel. Parking brake: Fully sealed, wet multi-disc brake built into the transmission. Applied by spring force, electro-hydraulic release with a switch on the instrument panel. Secondary brake: Dual brake circuits with rechargeable accumulators. One circuit or the parking brake fulfill all safety requirements. Standard: The brake system complies



Number of brake discs per wheel front/rear	1/1
Accumulators	3x1,0 l
Accumulator for parking brake	1x1,0 l



Steering system
Steering system: Load-sensing hydrostatic articulated steering. System supply: The steering system has priority feed from a load-sensing axial piston pump. Pump: Axial piston pump with variable displacement. Steering cylinders: Two double-acting cylin-ders.



Steering cylinders	1
Cylinder bore	80 mm
Piston rod diameter	50 mm
Stroke	486 mm
Relief pressure	21 MPa
Maximum flow	120 l/min
Maximum articulation	±40°





Cab
Instrumentation: All important information is centrally located in the operator's field of vision. Display for Contronic monitoring system. Heater and defroster: Heater coil with filtered fresh air and fan with four speeds. Defroster vents for all window areas. Operator's seat: Operator's seat with adjustable suspension and retractable seatbelt. The seat is mounted on a bracket on the rear cab wall. The forces from the retractable seatbelt are absorbed by the seat rails. Standard: The cab is tested and approved according to ROPS (ISO/CD 3471, SAE J1040), FOPS (ISO 3449). The cab meets with requirements according to ISO 6055 ("protective roof for high-lift vehicles") and SAE J386 ("Operator Restraint System").



Emergency exits	1
Sound level in cab according to ISO 6396	LpA 68 dB (A)
External sound level according to ISO 6395	LwA 106 dB (A)
(Directive 2000/14/EC) Ventilation	9 m³/min
Heating capacity	11 kW
Air conditioning (optional)	8 kW

Hydraulic system
System supply: Two load-sensing axial piston pumps with variable displacement. The steering function always has priority from one of the pumps. Valves: Double-act-ing 2-spool valve. The main valve is controlled by a 2-spool pilot valve. Lift function: The valve has four positions; raise, hold, lower and float position. Inductive/magnetic automatic boom kickout can be switched on and off and is adjustable to any position between maximum reach and full lifting height. Tilt function: The valve has three functions; roll-back, hold and dump. Inductive/magnetic automatic tilt can be adjusted to the desired bucket angle. Cylinders: Double-acting cylinders for all functions. Filter: Full flow filtration through 20 micron (absolute) filter cartridge.



Working pressure maximum, pump 1	21,0 MPa
Flow	145 l/min
at	10 MPa
and engine speed	32 r/s (1900 r/min)
Working pressure, pump 2	24,0 MPa
Flow	110 l/min
at	10 MPa
and engine speed	32 r/s (1900 r/min
Pilot system
Working pressure	3,5 MPa
Cycle times
Raise*	5,4 s
Tilt*	2,1 s
Lower, empty	2,5 s
Total cycle time	10,0 s

* with load as per ISO 5998 and SAE J818



Lift arm system
Torque parallel linkage with high breakout torque and exact parallel lift-arm action.

Lift cylinders	1
Cylinder bore	150 mm
Piston rod diameter	80 mm
Stroke	676 mm
Tilt cylinder	1
Cylinder bore	220 mm
Piston rod diameter	110 mm
Stroke	412 mm





Electrical system
Central warning system: Central warning light for the following functions, (buzzer with gear engaged): Engine oil pressure, transmission oil pressure, brake pressure, parking brake, hydraulic oil level, axle oil temperature, steering system pressure, low coolant level, coolant temperature, transmission oil temperature, hydraulic oil temperature, overspeeding in engaged gear, brake charging.

Voltage.	24 V
Batteries	2x12 V
Battery capacity	2x140 Ah
Cold cranking capacity, approx	1050 A
Reserve capacity, approx	270 min
Alternator rating	1540 W/55 A
Starter motor output	5,4 kW(7,3 hp)





Service

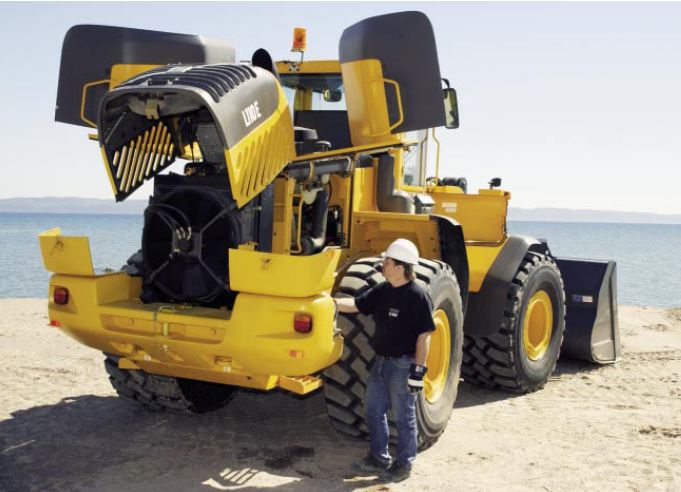

Service accessibility: Large, easy-to-open service doors with gas springs. Swing-out radiator grille and fan. Possibility to log and analyze data to facilitate troubleshooting.



Refill capacities
Fuel tank	215
Engine coolant	70
Hydraulic oil tank	143
Transmission oil	38
Engine oil	21
Axles front/rear	36/41



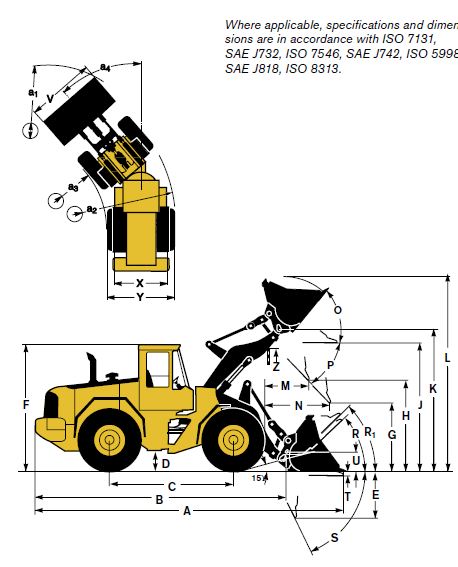

Specifications

STANDARD EQUIPMENT



Engine
Three stage air cleaner with ejector and inner filter
Indicator glass for coolant level
Preheating of induction air
Muffler, spark arresting
Fuel filter
Oil trap



Electrical system

24 V, prewired for optional accessories
Alternator, 24 V/55 A
Battery disconnect switch
Fuel gauge
Hour meter
Electric horn
Instrument panel with symbols
Lighting:
• Twin halogen front headlights with high and low beams
• Parking lights
• Double brake and tail lights
• Turn signals with flashing hazard light function
• Halogen working lights (2 front and 2 rear)
• Instrument lighting

Contronic, monitoring system, ECU
with log and analysis system
Contronic display
Fuel consumption
Outdoor temperature
Engine shutdown to idle in case of malfunction indication:
• High engine coolant temperature
• Low engine oil pressure
• High transmission oil temperature
Start interlock when gear is engaged

Brake test
Test function for warning and indicator lights
Warning and indicator lights:
• Charging
• Oil pressure engine
• Oil pressure, transmission



OPTIONAL EQUIPMENT
(Standard on certain markets)
Service and maintenance
Tool box
Tool kit

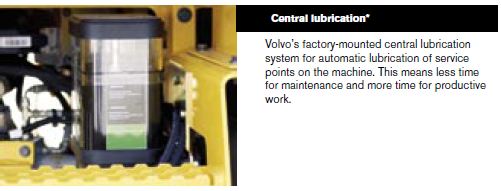

Automatic lubrication
Automatic lubrication of attachment bracket
Refill pump for auto lub system
Wheel nut wrench kit
Engine equipment
Engine block heater
Oil bath pre-cleaner
Turbo air cleaner
Radiator and hydraulic oil cooler, corrosion prot.
Hand-operated throttle
Fuel fill strainer
Coolant filter
Reversible fan
  Sy-klone pre-cleaner

Electrical system
Air filter for alternator
Alternator, 80 A
Attachment working lights
Extra working lights front
Extra working lights rear
Working lights, on cab, dual
Light, license plate
Assymetrical lights for left-hand traffic
Acoustic back-up signal
Rotating beacon, collapsible
Side marker lamps
Reverse light
Cab
Radio with tape recorder
Radio with CD

• Brake pressure
• Parking brake
• Hydraulic oil level
• Axle oil temperature
• Primary steering
• Secondary steering
• High beams
• Turn signals
• Rotating beacon
• Preheating coil
• Differential lock
• Coolant temperature
• Transmission oil temperature
• Brake charging
Level warnings:
• Engine oil level
• Coolant level
• Transmission oil level
• Hydraulic oil level
• Washer fluid level

Drivetrain
Automatic Power Shift with operator-controlled declutch function for transmission cut-out when braking
PWM-control between different gear positions
Forward and reverse switch by lever console
Differentials:
front: 100% hydraulic diff lock
rear: conventional



Brake system
Wet oil circulation cooled disc brakes on all four wheels
Dual brake circuits
Dual service brake pedals
Secondary brake system
Parking brake, el.-hydraulic
Brake wear indicator

Cab
ROPS (SAE J1040CC, ISO 3471), FOPS (SAE J231, ISO 3449)
Single key kit door/start
Acoustic inner lining

Installation kit for radio
Sunblinds, front and rear windows
Sunblinds, side windows
Sliding window, right
Sliding window, door
Retractable hipbelt, longer and wider than standard
Air conditioning
Ventilation air filter for work in asbestos environment
Operator's seat with low backrest
Operator's seat with low backrest, heated
Operator's seat with high backrest, heated
Operator's seat air suspended with high backrest and electrical heating
Instructor's seat
Armrest (left) for ISRI operator seat
Lunchbox holder
Steering knob
Noise reduction kit
Rear view camera
Adjustable steering wheel
Automatic temp control (ATC)
Corrosion protected condensor

Drivetrain
Diff lock front 100%, limited slip rear
Speed limiter 20 km/h, 30 km/h
Brake system
Audible parking brake alarm

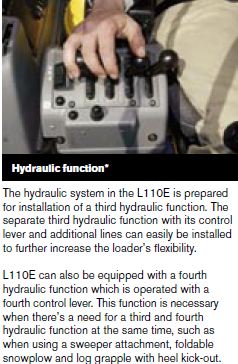

Hydraulic system
Single lever control
Single lever control for 3rd function
Detent 3rd function
3rd hydraulic function
3rd-4th hydraulic function

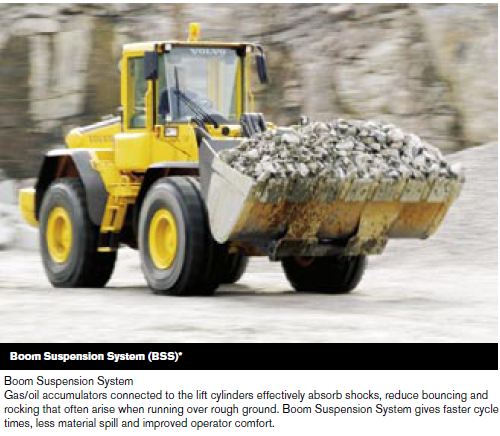

Boom Suspension System
Biodegradable hydraulic fluid
Attachment bracket, welded, optimal
Attachment bracket, cast, visibility optimized
Arctic kit, attachment locking hoses

Ashtray
Cigarette lighter
Lockable door
Cab heating with filter, fresh-air inlet and defroster
Floor mat
Interior lights
Interior rear-view mirror
2 exterior rear-view mirrors
Openable window right-hand side
Tinted safety glass
Hip retractable seatbelt (SAE J386)
Adjustable lever console
Ergonomically designed operator's seat with adjustable suspension
Storage compartment
Sun visor
Beverage holder
Windshield washers front and rear
Windshield wipers front and rear
Interval function for front and rear windshield wipers
Service platforms with anti-slip surfaces on front and rear fenders
Speedometer
Hydraulic system
Main valve, 2-spool
Pilot valve, 2-spool
Variable displacement axial piston pumps (3) for:
• working hydraulics
• steering system, pilot hydraulics and brakes
• fan motor
Boom lowering system
Boom lever detent, adjustable
Boom kickout, automatic, adjustable
Bucket positioner, automatic with position indicator, adjustable
Hydraulic oil cooler

External equipment
Noise and vibration dampening suspension of cab, engine and transmission
Lifting lugs
Easy-to-open side panels and engine hood
Frame steering, joint lock
Vandalism lock prepared for batteries and engine oil
Towing hitch

Arctic kit, pilot hoses and brake accum.
Separate attachment locking
External equipment
Mudguards, full coverage for 750/65
Mudflap kit for mudguards
Logging counterweight
Cover plates, rear frame
Protective equipment
Guards for front headlights
Guards for taillights
Guards for side windows and rear window
Windshield guard
Bellyguard front and rear
Other equipment
Comfort Drive Control, CDC
Secondary steering
Sign, slow moving vehicle
Single acting lifting functionSign 50 km/h
Noise reduction kit EU
CE-marking

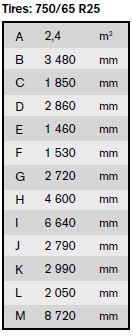

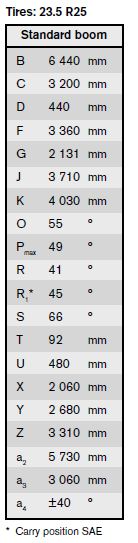

Tires
23.5 R25
750/65 R25

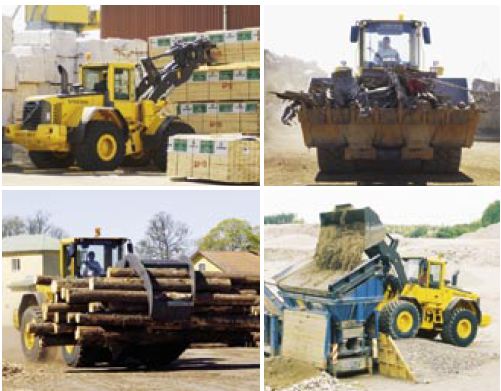

Attachments

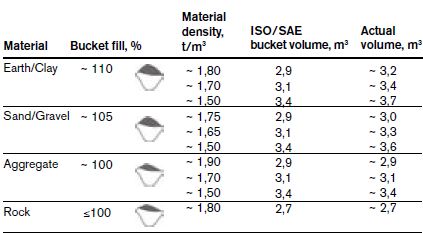

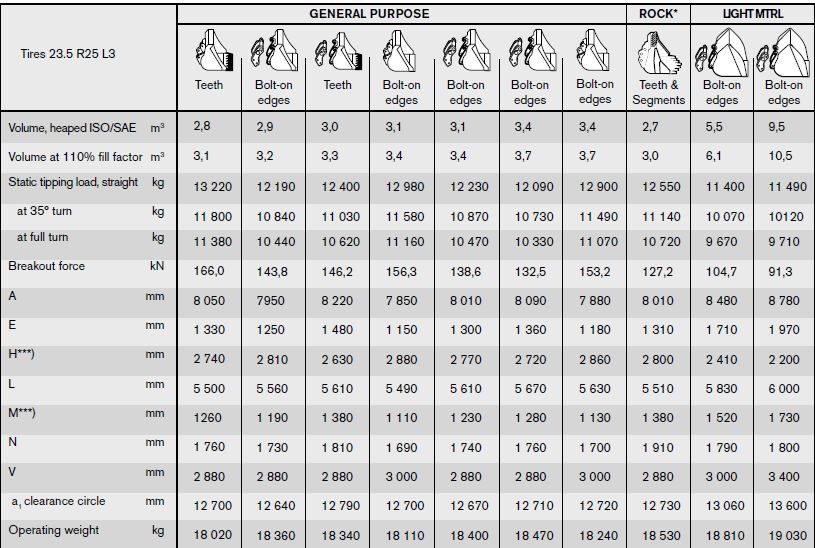

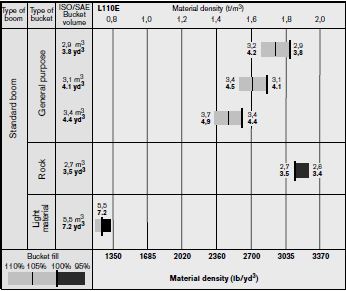

Buckets:
• Straight with/without teeth
• Spade nose with/without teeth
• High tipping
• Light materials
Bolt-on and weld-on bucket teeth
Cutting edge in three sections,bolt-on
Bucket spill guard
Fork equipment
Material handling arm

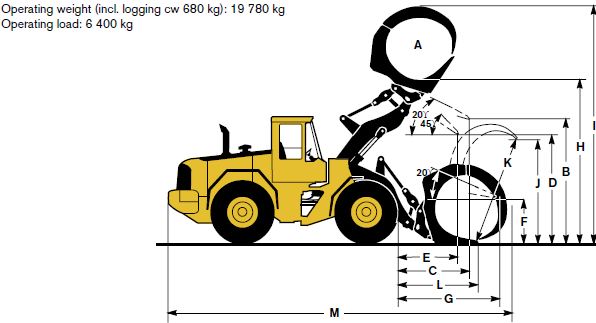

Log grapples





Technology on Human Terms

Volvo Construction Equipment is one of the world's leading manufacturers of construction machines, with a product range encompassing wheel loaders, excavators, articulated haulers, motor graders and more. The tasks they face vary considerably, but they all share one vital feature: technology which helps man to perform better: safely, efficiently and with care of the environment. We refer to it as Technology on Human Terms. The sheer width of the product range means it is always possible to choose exactly the right machine and attachment for the job. Each machine also comes with the quality, continuity and security which is represented by the Volvo name. The strength of the service and parts organizations; the security of always having immediate access to leading-edge research and technical development are part of the Volvo name. A machine from Volvo meets the very highest demands in all kinds of jobs, under all conditions, the world over. Volvo Construction Equipment develops, manufactures and markets construction equipment. We are a Volvo company with production facilities on four continents and a market presence in over 100 countries. For more information please visit our website: www.volvo.com
