The Volvo L120E in detail
Engine
Engine: 7 liter, 6-cylinder straight turbocharged
diesel engine with electronically
controlled unit pumps and conventional
injectors. The engine is of heavy-duty type
with wet replaceable cylinder liners and
replaceable valve guides and valve seats.
The throttle application is transmitted electrically
from the throttle pedal and eventual
hand throttle. Air cleaning: three-stage. Cooling
system: Hydrostatic, electronically controlled
fan and intercooler of the air/air type.

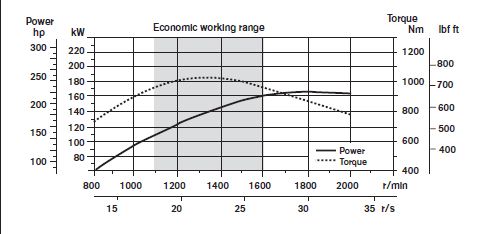

| Engine | Volvo D7D LA E2 |
| Max power at | 30,0 r/s (1800 r/min) |
| SAE J1995 gross. | 165 kW (224 hp) |
| ISO 9249, SAE J1349 | 164 kW (223 hp) |
| Max torque at | 23,3 r/s (1400 r/min) |
| SAE J1995 gross | 1020 Nm |
| ISO 9249, SAE J1349 | 1015 Nm |
| Economic working range | 1100–1600 r/min |
| Displacement | 7,1 l |
Drivetrain
Torque converter: single-stage. Transmission:
Volvo Countershaft-type transmission with
single lever control. Fast and smooth shifting
of gears between forward and reverse with
PWM-valves (Pulse Width Modulated). Gearshifting
system: Volvo Automatic Power Shift
(APS) with mode selector. Axles: Volvo, fully
fl oating axle shafts with planetary-type hub
reductions. Cast steel axle housing. Fixed
front axle and oscillating rear axle. 100% differential
lock on the front axle.
| Transmission | Volvo HTE 205 |
| Torque multiplication | 2,85:1 |
| Maximum speed, forward/reverse | |
| 1 | 7,1 km/h |
| 2 | 13,1 km/h |
| 3 | 24,7 km/h |
| 4 | 35,1 km/h |
| Measured with tires | 23.5 R25 L3 |
| Front axle/rear axle | Volvo/AWB 31/30 |
| Rear axle oscillation | ±13° |
| Ground clearance at 13° oscillation | 460 mm |
Brake system
Service brake: Volvo dual-circuit system
with nitrogen-charged accumulators. Outboard
mounted fully hydraulic operated, fully
sealed oil circulation cooled wet disc brakes.The operator can select automatic declutch
of the transmission when braking by a switch
on the instrument panel. Parking brake: Fully
sealed, wet multi-disc brake built into the transmission. Applied by spring force, electro-
hydraulic release with a switch on the
instrument panel. Secondary brake: Dual
brake circuits with rechargeable accumulators. One circuit or the parking brake fulfi ll
all safety requirements. Standard: The brake
system complies with the requirements of
ISO 3450 and SAE J1473.
| Number of brake discs per wheel front/rear | 1/1 |
| Accumulators | 3x1,0 l |
| Accumulator for parking brake | 1x1,0 l |
Steering system
Steering system: Load-sensing hydrostatic
articulated steering. System supply: The
steering system has priority feed from a
load-sensing axial piston pump. Pump: Axial
piston pump with variable displacement.
Steering cylinders: Two double-acting cylinders.
| Steering cylinders | 2 |
| Cylinder bore | 80 mm |
| Piston rod diameter | 50 mm |
| Stroke | 486 mm |
| Relief pressure | 21 MPa |
| Maximum fl ow | 120 l/min |
| Maximum articulation | ±40° |
Cab
Instrumentation: All important information
is centrally located in the operator's fi eld
of vision. Display for Contronic monitoring
system. Heater and defroster: Heater coil
with filtered fresh air and fan with four
speeds. Defroster vents for all window areas.
Operator's seat: Operator's seat with adjustable
suspension and retractable seatbelt.
The seat is mounted on a bracket on the
rear cab wall. The forces from the retractable
seatbelt are absorbed by the seat rails.
Standard: The cab is tested and approved
according to ROPS (ISO/CD 3471, SAE
J1040), FOPS (ISO 3449, SAE J231). The
cab meets with requirements according to
ISO 6055 ("protective roof for high-lift vehicles")
and SAE J386 ("Operator Restraint
System").
| Emergency exits | 1 |
| Sound level in cab
according to ISO 6396 |
LpA 68 dB (A) |
| External sound level
according to ISO 6395 |
LwA 106 dB (A) |
| Ventilation | 9 m3/min |
| Heating capacity | 11 kW |
| Air conditioning (optional) | 8 kW |
Hydraulic system
System supply: Two load-sensing axial piston
pumps with variable displacement. The
steering function always has priority from
one of the pumps. Valves: Double-acting
2-spool valve. The main valve is controlled by
a 2-spool pilot valve. Lift function: The valve
has four positions; raise, hold, lower and
fl oat position. Inductive/magnetic automatic
boom kickout can be switched on and off
and is adjustable to any position between
maximum reach and full lifting height. Tilt
function: The valve has three functions; rollback,
hold and dump. Inductive/magnetic
automatic tilt can be adjusted to the
desired bucket angle. Cylinders: Doubleacting
cylinders for all functions. Filter: Full
fl ow fi ltration through 20 micron (absolute)
fi lter cartridge.
| Relief pressure maximum, pump 1 | 25,0 MPa |
| Flow | 145 l/min |
| at | 10 MPa |
| and engine speed | 32 r/s (1900 r/min) |
| Relief pressure, pump 2 | 21,0 MPa |
| Flow | 110 l/min |
| at | 10 MPa |
| and engine speed | 32 r/s (1900 r/min) |
| Pilot system | |
| Relief pressure | 3,5 MPa |
| Cycle times | |
| Raise* | 5,4 s |
| Tilt* | 2,1 s |
| Lower, empty | 2,5 s |
| Total cycle time | 10,0 s |
* with load as per ISO 5998 and SAE J818
Lift arm system
Torque parallel linkage with high breakout
torque and exact parallel lift-arm action.
| Lift cylinders | 2 |
| Cylinder bore | 150 mm |
| Piston rod diameter | 80 mm |
| Stroke | 676 mm |
| Tilt cylinder | 1 |
| Cylinder bore | 220 mm |
| Piston rod diameter | 110 mm |
| Stroke | 412 mm |
Electrical system
Central warning system: Central warning
light for the following functions, (buzzer with
gear engaged): Engine oil pressure, transmission
oil pressure, brake pressure, parking
brake, hydraulic oil level, axle oil temperature,
steering system pressure, low coolant level,
coolant temperature, transmission oil temperature,
hydraulic oil temperature, overspeeding
in engaged gear, brake charging.
| Voltage | 24 V |
| Batteries | 2x12 V |
| Battery capacity | 2x140 Ah |
| Cold cranking capacity, approx | 1050 A |
| Reserve capacity, approx | 270 min |
| Alternator rating | 1540 W/55 A |
| Starter motor output | 5,4 kW (7,3 hp) |
Service

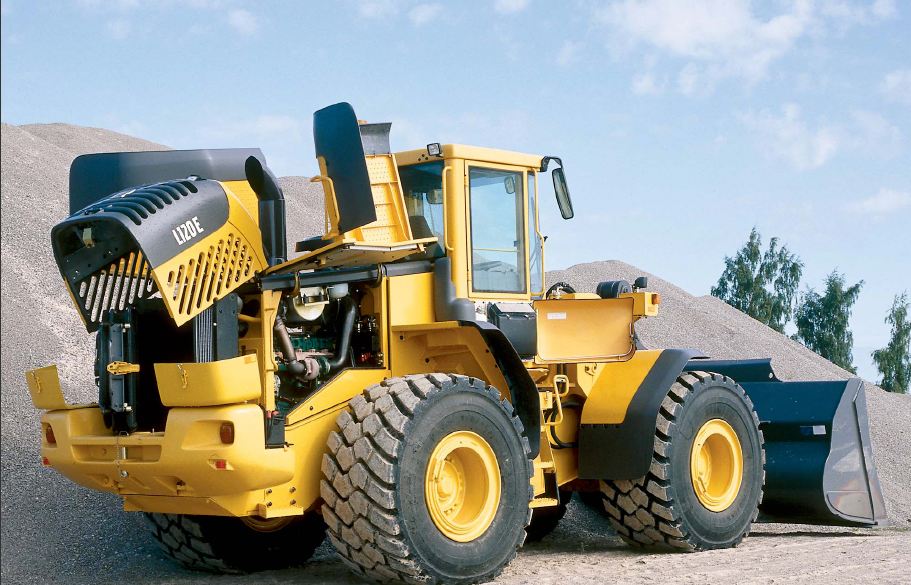

Service accessibility: Large, easy-to-open
service doors with gas springs. Swing-out
radiator grille and fan. Possibility to log and
analyze data to facilitate troubleshooting.
| Refi ll capacities | |
| Fuel tank | 215 |
| Engine coolant | 70 |
| Hydraulic oil tank | 143 |
| Transmission oil | 38 |
| Engine oil | 21 |
| Axles front/rear | 36/41 |

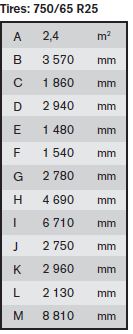

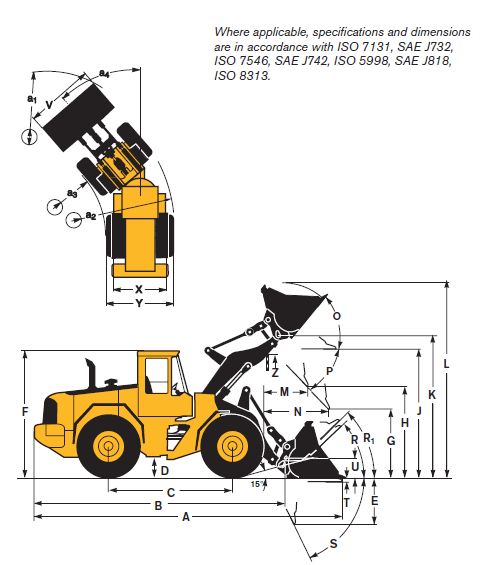

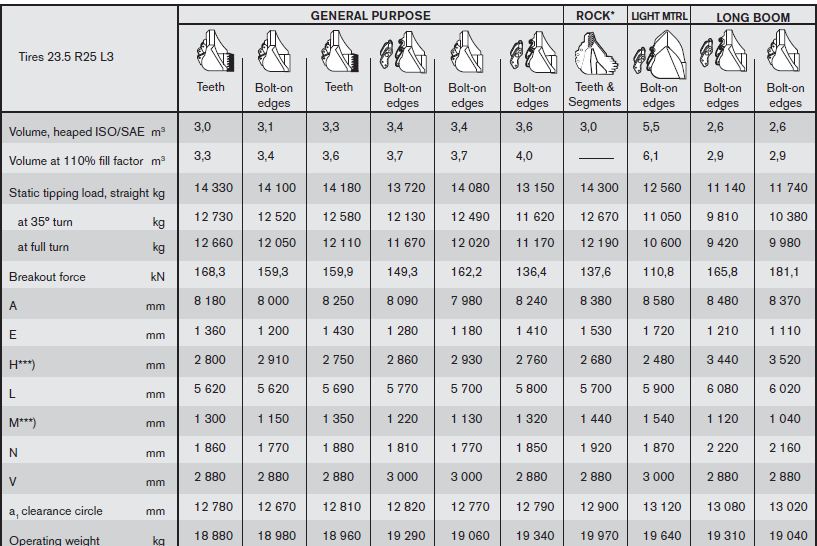

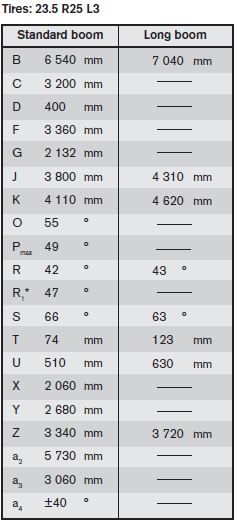

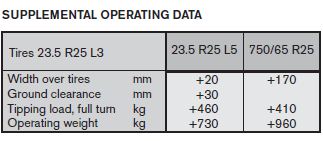

Specifi cations

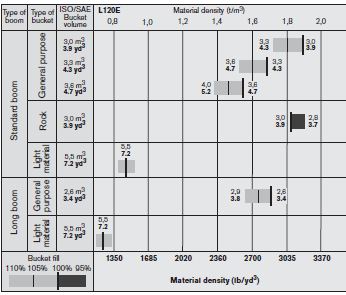

BUCKET SELECTION CHART

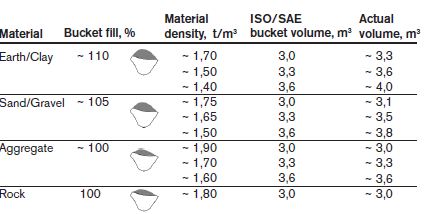

The choice of bucket is determined by the density of the material and the
expected bucket fi ll factor. The actual bucket volume is often larger than the rated
capacity, due to the TP Linkage features:
• Open bucket design.
• Very good roll back in all positions.
• Good bucket fi ll performance. The below example and table
are intended for Standard boom. Example: Sand and gravel. Fill factor ~ 105%.
Density 1,65 t/m3. Result: The 3,3 m3 bucket carries 3,5 m3. For optimum
stability always consult the bucket selection chart.
STANDARD EQUIPMENT
Engine
Three stage air cleaner with ejector and inner filter
Indicator glass for coolant level
Preheating of induction air
Muffl er, spark arresting
Fuel fi lter
Oil trap
Electrical system
24 V, prewired for optional accessories
Alternator, 24 V/55 A
Battery disconnect switch
Fuel gauge
Hour meter
Electric horn
Instrument panel with symbols
Lighting:
• Twin halogen front headlights with high and low
beams
• Parking lights
• Double brake and tail lights
• Turn signals with fl ashing hazard light function
• Halogen working lights (2 front and 2 rear)
• Instrument lighting
Contronic,
monitoring system, ECU
with log and analysis system
Contronic display
Fuel consumption
Outdoor temperature
Engine shutdown to idle in case of malfunction indication:
• High engine coolant temperature
• Low engine oil pressure
• High transmission oil temperature
Start interlock when gear is engaged
Brake test
Test function for warning and indicator lights
Warning and indicator lights:
• Charging
• Oil pressure engine
• Oil pressure, transmission
• Brake pressure
• Parking brake
• Hydraulic oil level
• Axle oil temperature
• Primary steering
• Secondary steering
• High beams
• Turn signals
• Rotating beacon
• Preheating coil
• Differential lock
• Coolant temperature
• Transmission oil temperature
• Brake charging
Level warnings:
• Engine oil level
• Coolant level
• Transmission oil level
• Hydraulic oil level
• Washer fl uid level
Drivetrain
Automatic Power Shift with operator-controlled
declutch function for transmission cut-out when
braking
PWM-control between different gear positions
Forward and reverse switch by lever console
Differentials:
front: 100% hydraulic diff lock
rear: conventional
Brake system
Wet oil circulation cooled disc brakes on all four
wheels
Dual brake circuits
Dual service brake pedals
Secondary brake system
Parking brake, el.-hydraulic
Brake wear indicator
Cab
ROPS (SAE J1040CC, ISO 3471), FOPS (SAE
J231, ISO 3449)
Single key kit door/start
Acoustic inner lining
Ashtray
Cigarette lighter
Lockable door
Engine
Three stage air cleaner with ejector and inner fi lter
Indicator glass for coolant level
Preheating of induction air
Muffl er, spark arresting
Fuel fi lter
Oil trap
Electrical system
24 V, prewired for optional accessories
Alternator, 24 V/55 A
Battery disconnect switch
Fuel gauge
Hour meter
Electric horn
Instrument panel with symbols
Lighting:
• Twin halogen front headlights with high and low
beams
• Parking lights
• Double brake and tail lights
• Turn signals with fl ashing hazard light function
• Halogen working lights (2 front and 2 rear)
• Instrument lighting
Contronic,
monitoring system, ECU
with log and analysis system
Contronic display
Fuel consumption
Outdoor temperature
Engine shutdown to idle in case of malfunction indication:
• High engine coolant temperature
• Low engine oil pressure
• High transmission oil temperature
Start interlock when gear is engaged
Brake test
Test function for warning and indicator lights
Warning and indicator lights:
• Charging
• Oil pressure engine
• Oil pressure, transmission
• Brake pressure
• Parking brake
Cab heating with fi lter, fresh-air inlet and defroster
Floor mat
Interior lights
Interior rear-view mirror
2 exterior rear-view mirrors
Openable window right-hand side
Tinted safety glass
Hip retractable seatbelt (SAE J386)
Adjustable lever console
Ergonomically designed operator's seat with adjustable
suspension
Storage compartment
Sun visor
Beverage holder
Windshield washers front and rear
Windshield wipers front and rear
Interval function for front and rear windshield wipers
Service platforms with anti-slip surfaces on front and
rear fenders
Speedometer
Hydraulic system
Main valve, 2-spool
Pilot valve, 2-spool
Variable displacement axial piston pumps (3) for:
• working hydraulics
• steering system, pilot hydraulics and brakes
• fan motor
Boom lowering system
Boom lever detent, adjustable
Boom kickout, automatic, adjustable
Bucket positioner, automatic with position indicator,
adjustable
Hydraulic oil cooler
External equipment
Noise and vibration dampening suspension of cab,
engine and transmission
Lifting lugs
Easy-to-open side panels and engine hood
Frame steering, joint lock
Vandalism lock prepared for batteries and engine oil
Towing hitch
(Standard on certain markets)
Service and maintenance
Tool box
Tool kit
Automatic lubrication
Automatic lubrication of attachment bracket
Refi ll pump for auto lub system
Wheel nut wrench kit
Engine equipment
Engine block heater
Oil bath pre-cleaner
Turbo air cleaner
Radiator and hydraulic oil cooler, corrosion prot.
Hand-operated throttle
Fuel fi ll strainer
Coolant fi lter
Electrical system
Air fi lter for alternator
Alternator, 80 A
Attachment working lights
Extra working lights front
Extra working lights rear
Light, licence plate
Assymetrical lights for left-hand traffi c
Acoustic back-up signal
Rotating beacon, collapsible
Side marker lamps
Cab
Radio with tape recorder
Installation kit for radio
Sunblinds, front and rear windows
Sunblinds, side windows
OPTIONAL EQUIPMENT Sliding window, right
Sliding window, door
Retractable hipbelt, longer and wider than standard
Air conditioning
Ventilation air fi lter for work in asbestos environment
Operator's seat with low backrest
Operator's seat with low backrest, heated
Operator's seat with high backrest, heated
Operator's seat air suspended with high backrest
and electrical heating
Instructor's seat
Armrest (left) for ISRI operator seat
Lunchbox holder
Steering knob
Noise reduction kit
Rear view camera
Adjustable steering wheel
Automatic temp control (ATC)
Drivetrain
Diff lock front 100%, limited slip rear
Speed limiter 20 km/h, 30 km/h
Brake system
Audible parking brake alarm
Hydraulic system
3rd hydraulic function
3rd-4th hydraulic function
Boom Suspension System
Biodegradable hydraulic fl uid
Attachment bracket, welded, optimal
Attachment bracket, cast, visibility optimized
Arctic kit, attachment locking hoses
Arctic kit, pilot hoses and brake accum.
Separate attachment locking, standard boom
Separate attachment locking, long boom
Cab heating with fi lter, fresh-air inlet and defroster
Floor mat
Interior lights
Interior rear-view mirror
2 exterior rear-view mirrors
Openable window right-hand side
Tinted safety glass
Hip retractable seatbelt (SAE J386)
Adjustable lever console
Ergonomically designed operator's seat with adjustable
suspension
Storage compartment
Sun visor
Beverage holder
Windshield washers front and rear
Windshield wipers front and rear
Interval function for front and rear windshield wipers
Service platforms with anti-slip surfaces on front and
rear fenders
Speedometer
Hydraulic system
Main valve, 2-spool
Pilot valve, 2-spool
Variable displacement axial piston pumps (3) for:
• working hydraulics
• steering system, pilot hydraulics and brakes
• fan motor
Boom lowering system
Boom lever detent, adjustable
Boom kickout, automatic, adjustable
Bucket positioner, automatic with position indicator,
adjustable
Hydraulic oil cooler
External equipment
Noise and vibration dampening suspension of cab,
engine and transmission
Lifting lugs
Easy-to-open side panels and engine hood
Frame steering, joint lock
Vandalism lock prepared for batteries and engine oil
Towing hitch
External equipment
Long boom
Mudguards, full coverage for 750/65
Mudfl ap kit for mudguards

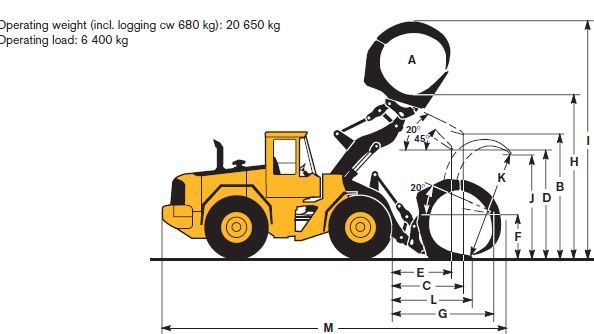

Logging counterweight
Protective equipment
Guards for front headlights
Guards for taillights
Guards for side windows and rear window
Windshield guard
Bellyguard front and rear
Other equipment
Comfort Drive Control, CDC
Secondary steering
Sign, slow moving vehicle
Single acting lifting function
Tires
23.5 R25
750/65 R25
Attachments
Buckets:
• Straight with/without teeth
• Spade nose with/without teeth
• High tipping
• Light materials
Bolt-on and weld-on bucket teeth
Cutting edge in three sections,
bolt-on
Bucket spill guard
Fork equipment
Material handling arm
Log grapples
Назад в раздел
