VOLVO EXCAVATOR EC460 LONG CRAWLER



Engine power, gross:
239 kW (321 hp)
Operating weight:
44.3 ~ 46.0 t

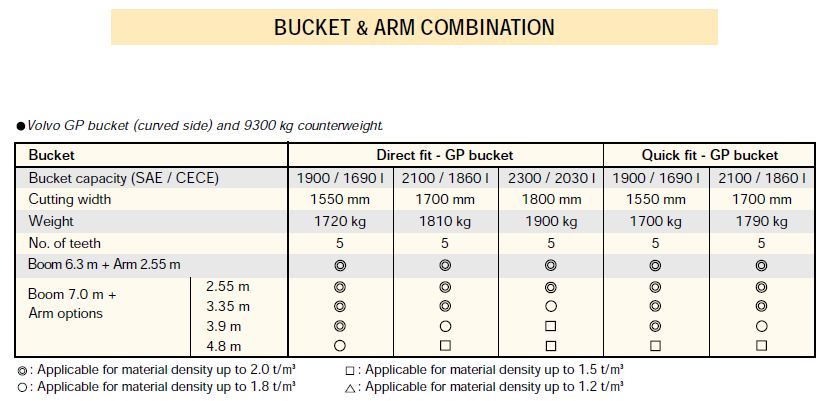

Buckets (SAE):
1900 ~ 2300 l
Low-emission, turbocharged
Cummins diesel engine with
direct injection
Integrated mode selection
system and electronically
controlled system (ACS)

2 variable displacement axial
piston pumps. Independent and
simultaneous movements of the
digging equipment are
controlled by the "Automatic
sensing work mode".
Cab
_ Ergonomic environment
_ Low sound level
_ Filtered air
_ Hydraulic dampening mounts

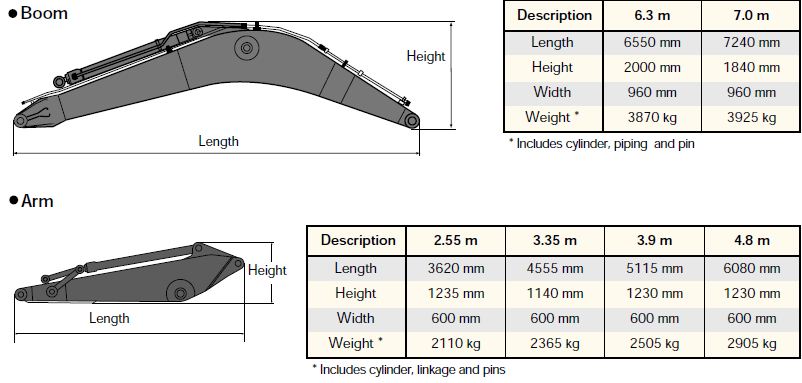

Strong digging equipment,
produced by robotic welding

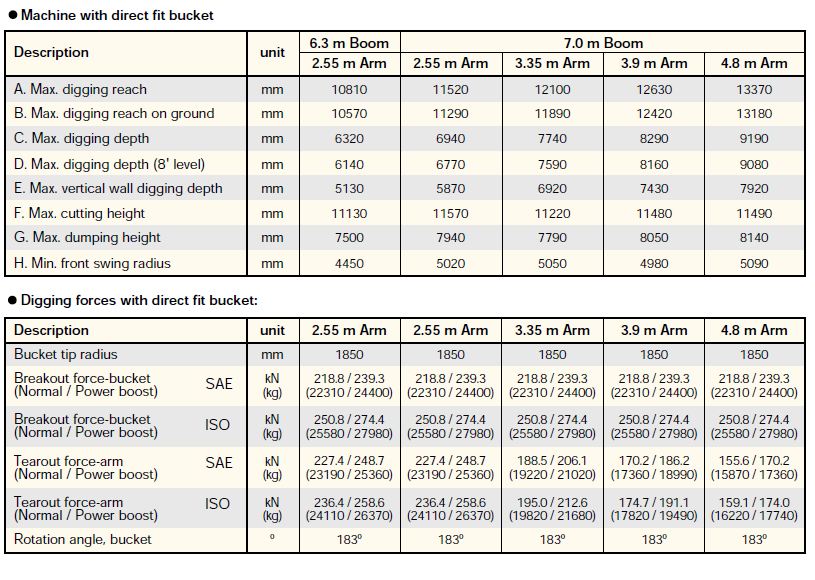

High lifting, breakout and
tearout forces for tough digging
conditions
Long undercarriage for good
stability

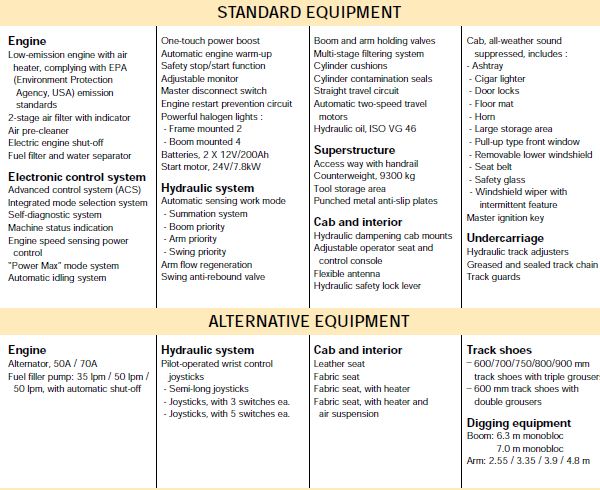

Auxiliary hydraulic valve as
standard

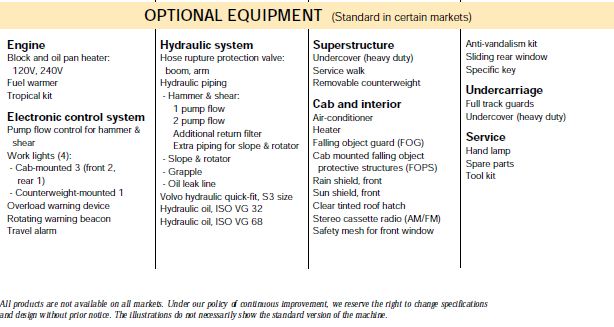

Prepared for a number of
optional items









ENGINE



The engine is a low-emission, turbocharged, 4-stroke diesel engine with water cooling, direct injection and aftercooler, especially developed for excavator use. The machine can work at any job site, contributing to good fuel economy, low sound level, less wear and a longer life. Air filter: 3-stage, includes pre-cleaner Automatic idling system: Reduces the engine speed to an idling speed when levers and pedals are not activated.



Maker	CUMMINS
Model	M11-C
Power output at	33 r/s (2000 rpm)
Net (ISO 9249/DIN 6271	221 kW (300 ps / 296 hp)
Gross (SAE J1349).	239 kW (325 ps / 321 hp)
Max. torque	1177 N.m (120 kg.m) at 1500 rpm
No. of cylinders	6
Displacement	10.8
Bore	125 mm
Stroke	147 mm





ELECTRICAL SYSTEM



Voltage	24 V
Batteries	2 X 12 V
Battery capacity	200 Ah
Alternator	24 V / 50 A





SERVICE CAPACITIES

The superstructure is swung by the means of two axial pistonmotors and planetary reduction units. Automatic swing  holding brakes and anti-rebound valves are standard.

Max. swing speed

8.0 rpm





SERVICE REFILL CAPACITIES

Fuel tank	665
Hydraulic system, total	540
Hydraulic tank	285
Engine oil	34
Engine coolant	49
Swing reduction units	2 X 6.0
Travel reduction units	2 X 5.0





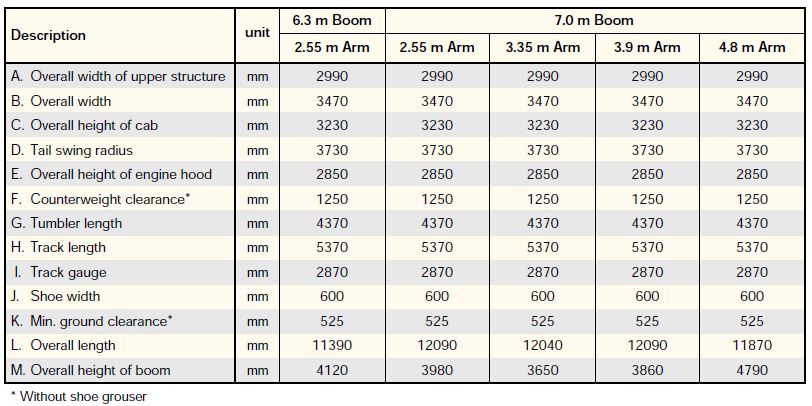

UNDERCARRIAGE





The undercarriage has an X-shaped frame. The greased and sealed track chain is standard.

No. of track pads	2 X 52
Link pitch	216 mm
Shoe width, triple grouser	600/700/750 800/900 mm
Shoe width, double grouser	600 mm
No. of lower track rollers	2 X 10
No. of upper rollers	2 X 2



DRIVE



Each track is powered by an automatic two-speed travel motor. The track brakes are multi-disc, spring-applied and hydraulically released. The travel motors, brake and planetary gears are wellprotected in the track frame.



Max. tractive effort	320.7 kN (32700 kg)
Max. travel speed (1st/2nd)	2.8/4.3 km/h
Gradeability	35º (70 %)



HYDRAULIC SYSTEM



The hydraulic system, named "Automatic Sensing Work Mode", is designed for high productivity, high digging capacity, high maneuvering precision and good fuel economy. The summation system, boom priority, arm priority, swing priority, and regeneration system of the arm flow are provided for the best operation. The following important functions are included in the system ; Summation system: providing full use of the pump oil flow. Boom priority: gives priority to the boom operation for fast raising when loading or deep excavating. Arm priority: gives priority to the arm operation for faster cycle times in leveling and for increased bucket filling when digging. Swing priority: supplies priority to the swing operation for faster swing during simultaneous operations. Regeneration system: enhances the cylinder life cycle to prevent cavitation and provides priority to other movements during simultaneous operations. Power boost: All digging and lifting forces are increased. Holding valves: Boom and arm holding valves are standard. Power Max: All function speeds are increased.





Pumps Main pump: Type	2 X variable displacement axial piston pumps
Maximum flow	2 X 330 l/min
Pilot pump: Type	Gear pump
Maximum flow	30 l/min
Hydraulic motors Travel	2 X variable displacement axial piston motors
Swing	2 X fixed displacement piston motors with mechanical brakes
Relief valve setting Attachment	31.4/34.3 MPa (320/350 kg/cm2)
Travel circuit	31.4 MPa (320 kg/cm2)
Swing circuit	24.5 MPa (250 kg/cm2)
Pilot circuit	3.9 MPa (40 kg/cm2)
Hydraulic cylinders Monobloc boom	2
bore X stroke	165 mm X 1590 mm
Arm	1
bore X stroke	190 mm X 1880 mm
Bucket	1
bore X stroke	165 mm X 1335 mm



CAB



Easily accessible cab with a wide door and lined with soundabsorbing material. The cab, which is supported by hydraulic dampening mounts to reduce shock and vibration, has all-around visibility. The front windshield can slide up into the ceiling and the lower front glass can be removed. Integrated air-conditioning and heating system: The pressurized and filtered cab air is supplied by a 4-speed fan. The air is distributed via 8 vents. Ergonomic operator's seat: The adjustable seat and control consoles move independently to accommodate the operator well. The seat has eight different adjustments and a seat belt to meet any operator's requirement. Sound level: Approved according to the Directive 86/662/EEC.



Exterior noise (ISO 6395) mean value of LWA (sound power level)	106 dB(A)
Operator's position (ISO 6396) with the door closed mean value of LPA (sound pressure level)	75 dB(A)

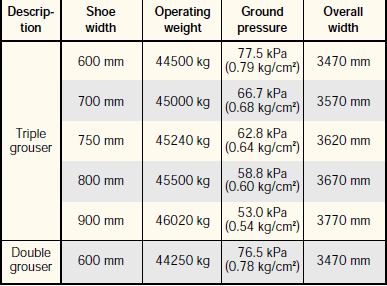

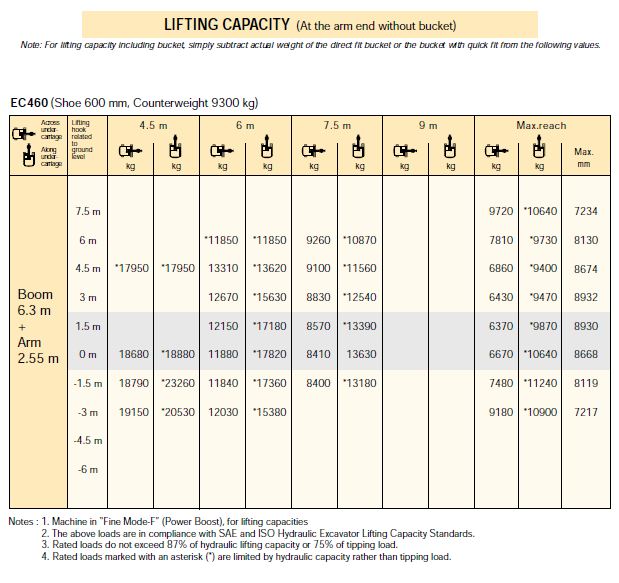

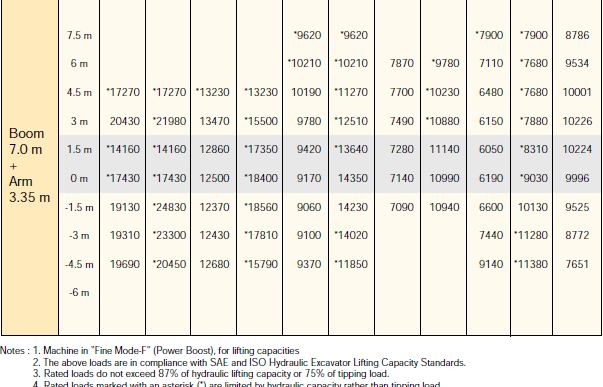

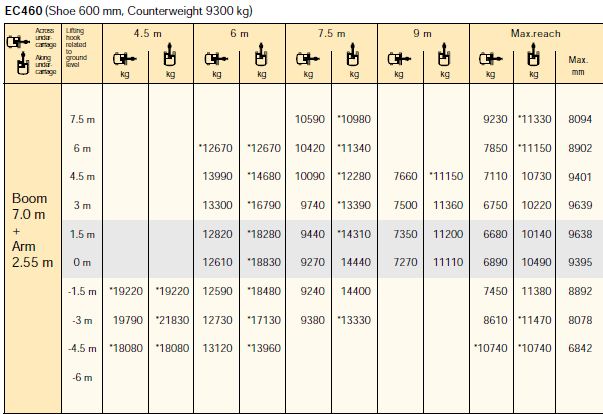

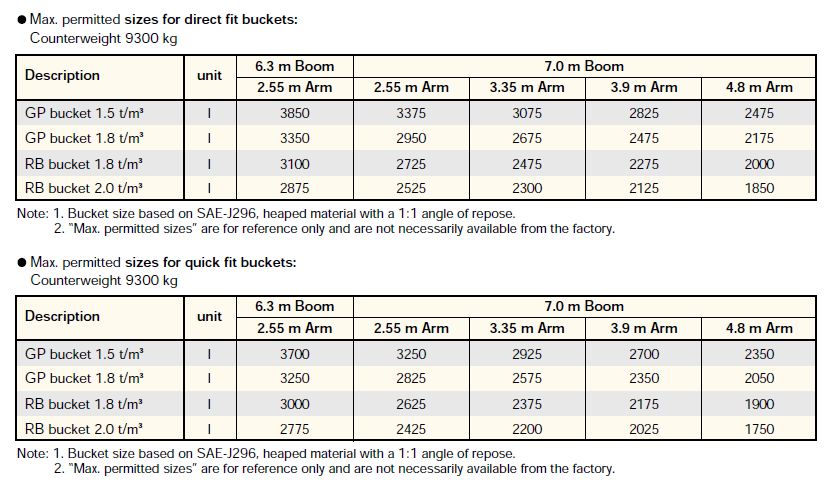

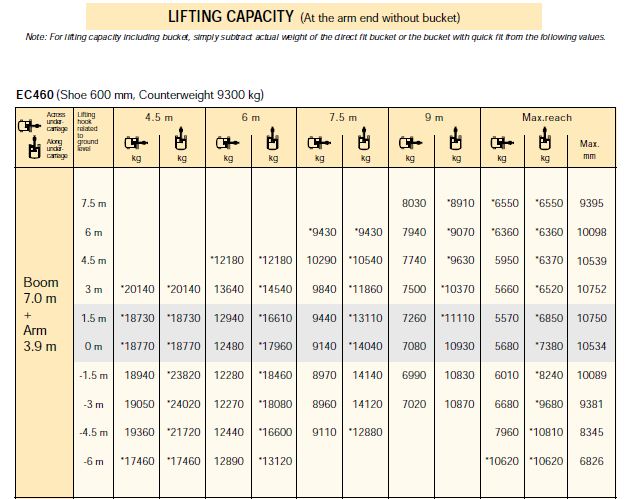

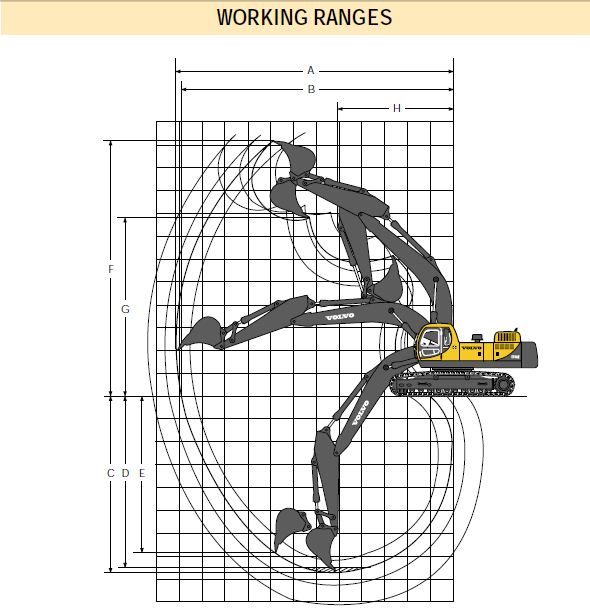

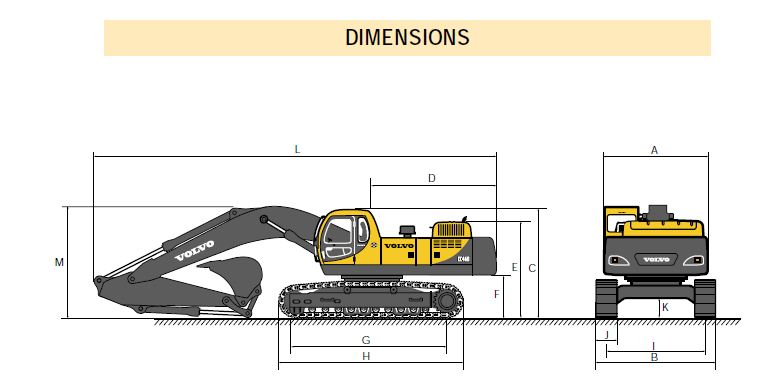

GROUND PRESSURE





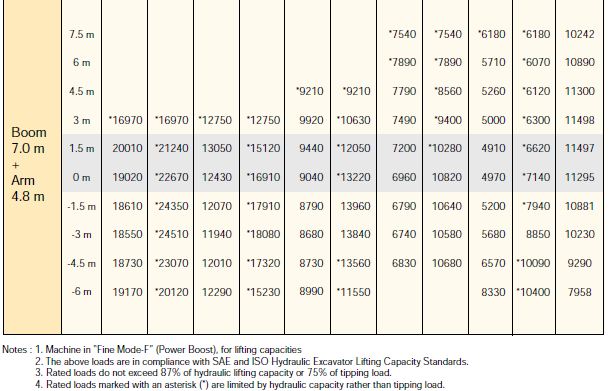

Machine with 7.0 m boom, 3.35 m arm, 2060 l (1730 kg) bucket and 9300 kg counterweight.
