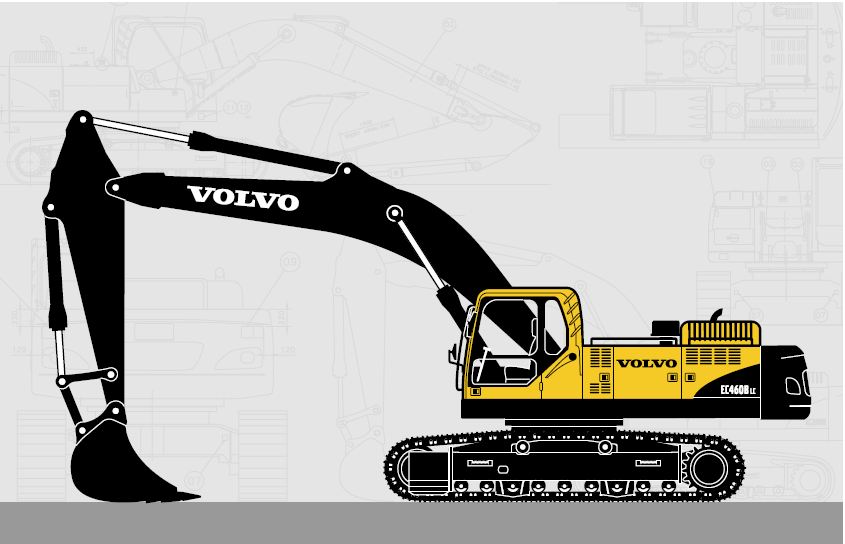

VOLVO EXCAVATOR EC460B LC

• Engine power, gross:
239 kW (321 hp)
• Operating weight:
45,1 ~ 47,9 t

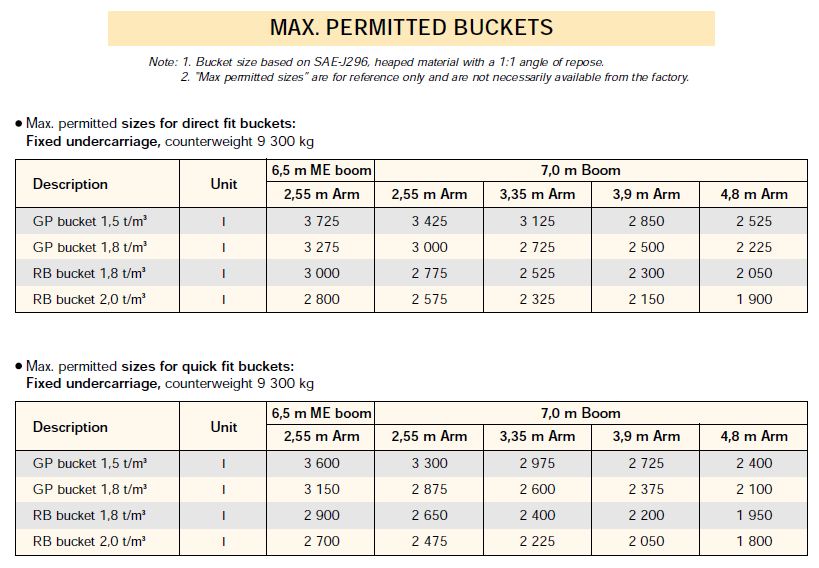

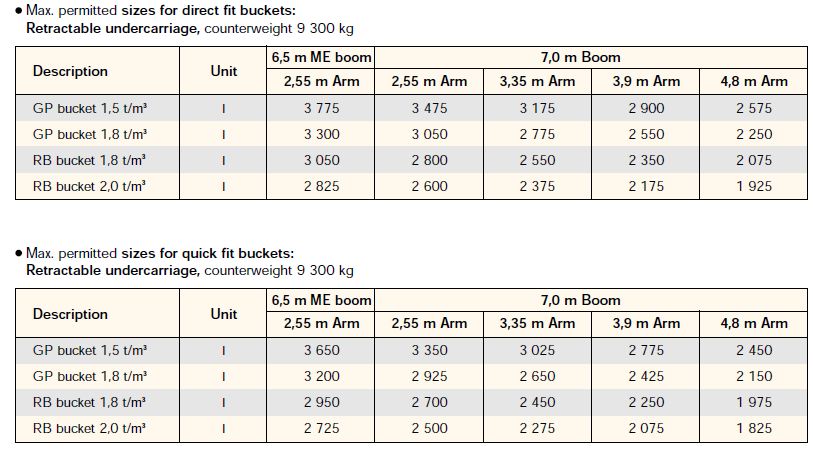

• Buckets (SAE)
1 800 ~ 3 775 l
• Turbocharged VOLVO diesel
engine with direct injection and
charged air cooler meets
EU Step 2 requirements

• Contronics, advanced mode
selection system and
electronically controlled system
• 2 variable displacement axial
piston pumps. Independent and
simultaneous movements of the
digging equipment are controlled
by "Automatic Sensing Work
Mode".
• Cab
– Ergonomic environment
– Low sound level
– Filtered air
– Hydraulic dampening mounts

• Strong digging equipment,
produced by robotic welding
• High lifting, breakout and tearout
forces for tough digging
conditions
• Long undercarriage for good
stability
• Auxiliary hydraulic valve as
standard
• Prepared for a number of optional
items

ENGINE

The engine is a turbocharged, 4-stroke diesel engine with water cooling, direct injection and charged air cooler that meets EU Step 2 requirements. The engine has been developed especially for excavator use, providing good fuel economy, low noise levels and a long service life. Air Filter: 3-stage, includes pre-cleaner Automatic Idling System: Reduces engine speed to idle when the levers and pedals are not activated resulting in less fuel consumption and low cab noise level.

Maker	VOLVO
Model	D12C EAE2
Power output at	32 r/s (1 900 rpm)
Net (ISO 9249/DIN 6271	228 kW (310 ps / 306 hp)
Gross (SAE J1349).	239 kW (325 ps / 321 hp)
Max. torque	1 549 N.m at 1 400 rpm
No. of cylinders	6
Displacement	12,1
Bore	131 mm
Stroke	150 mm

ELECTRICAL SYSTEM

Well-protected electrical system with high capacity. Waterproof double-lock harness plugs are used to secure corrosion free connections. The main relays and solenoid valves are shielded to prevent damage. A master switch is standard. Contronics, provides advanced monitoring of machine function and important diagnostic information.

Voltage	24 V
Batteries	2 X 12 V
Battery capacity	200 Ah
Alternator	28 V / 55 A

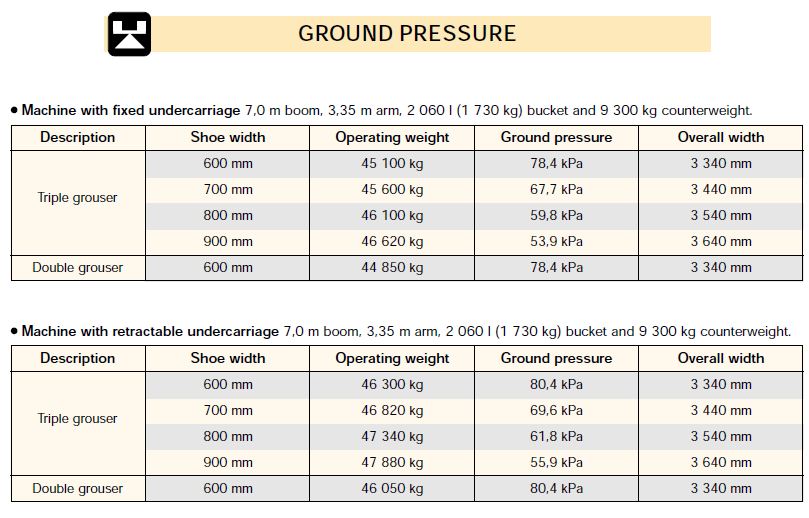

UNDERCARRIAGE

The undercarriage has a robust X-shaped frame, greased and sealed track chains are standard.

Fixed undercarriage
No. of track shoes	2 x 52
Link pitch	216 mm
Shoe width, triple grouser	600 / 700 / 800 / 900 mm
Shoe width, double grouser	600 mm
No. of lower rollers	2 x 9
No. of top rollers	2 x 2
Mechanically retractable undercarriage
No. of track shoes	2 x 52
Link pitch	216 mm
Shoe width, triple grouser	600 / 700 / 800 / 900 mm
Shoe width, double grouser	600 mm
No. of lower rollers	2 x 9
No. of top rollers	2 x 3

DRIVE

Each track is powered by an automatic two-speed shifttravel motor. The track brakes are multi-disc, spring-applied
  and hydraulic released. The travel motor, brake and planetarygears are well protected in the track frame.

Max. tractive effort	324,6 kN
Max. travel speed	2,9 / 4,8 km/h
Gradeability	35o (70%)

SLEW SYSTEM

The slew system uses 2 axial piston motors, driving 2 planetary gearboxes for maximum torque. An automatic holding brake and anti-rebound valves are standard.

Max. slew speed

8,5 rpm

SERVICE REFILL CAPACITIES



Fuel tank	685
Hydraulic system, total	525
Hydraulic tank	270
Engine oil	39
Engine coolant	65,4
Slew reduction unit	2 x 6,0
Travel reduction unit	2 x 5,5

UNDERCARRIAGE

The undercarriage has a robust X-shaped frame, greased and sealed track chains are standard.

Fixed undercarriage
No. of track shoes	2 x 52
Link pitch	216 mm
Shoe width, triple grouser	600 / 700 / 800 / 900 mm
Shoe width, double grouser	600 mm
No. of lower rollers	2 x 9
No. of top rollers	2 x 2
Mechanically retractable undercarriage
No. of track shoes	2 x 52
Link pitch	216 mm
Shoe width, triple grouser	600 / 700 / 800 / 900 mm
Shoe width, double grouser	600 mm
No. of lower rollers	2 x 9
No. of top rollers	2 x 3

CAB

The operator's cab has easy access via a wide door opening. The cab is supported on hydraulic dampening mounts to reduce shock and vibration levels. These along with a sound
absorbing lining provide low noise levels. The cab has exellent all-round visibility. The front windshield can easily slide up into the ceiling, and the lower front glass can be removed and stored. The glass is stored in the door. Integrated air conditioning and heating system: The pressurized and filtered cab air is supplied by automatically controlled fan. The air is distributed via 13 vents. Ergonomic operator's seat: The adjustable seat and joystick consoles move independently to accommodate the operator. The seat has nine different adjustments and a seat belt to meet any operator's comfort and safety.

Sound Level: Sound level in cab according to ISO 6396	LpA 73 dB(A)
External sound level according to ISO 6395	75 dB(A)

HYDRAULIC SYSTEM

Mode", is designed for high-productivity, high-digging capacity, high-maneuvering precision and good fuel economy. The summation system, boom, arm and slew priority along with boom and arm regeneration are provides optimum performance. The following important functions are included in the system: Summation system: Combining the flow of both hydraulic pumps to ensure quick cycle times and high productivity. Boom priority: Gives priority to the boom operation for faster raising when loading or deep excavation. Arm priority: Gives priority to the arm operation for faster cycle times in leveling and for increased bucket filling when digging. Slew priority: Supplies priority to the slew operation for
faster slew simultaneous operations. Regeneration system: Prevents cavitation and provides flow to other movements during simultaneous operations for maximum productivity.
Power boost: All digging and lifting forces are increased. Holding valves: Boom and arm holding valves prevent the digging equipment from creeping. Power Max: All function speeds are increased.



Main pump Type	2 x variable displacement axial piston pumps
Maximum flow	2 x 345 l/min
Pilot pump Type	Gear pump
Maximum flow	1 x 28 l/min
Hydraulic motors Travel	Variable displacement axial piston motors
Slew	Fixed displacement axial piston motor with mechanical brake
Relief valve setting Implement	31,4 / 34,3 Mpa
Travel circuit	31,4 Mpa
Slew circuit	24,5 Mpa
Pilot circuit	3,9 Mpa
Hydraulic cylinders Boom	2
bore x stroke	165 x 1 590 mm
Arm	1
bore x stroke	190 x 1 850 mm
Bucket	1
bore x stroke	165 x 1 335 mm
ME bucket	1
bore x stroke	175 x 1 335 mm
